Assist Power Window Switch

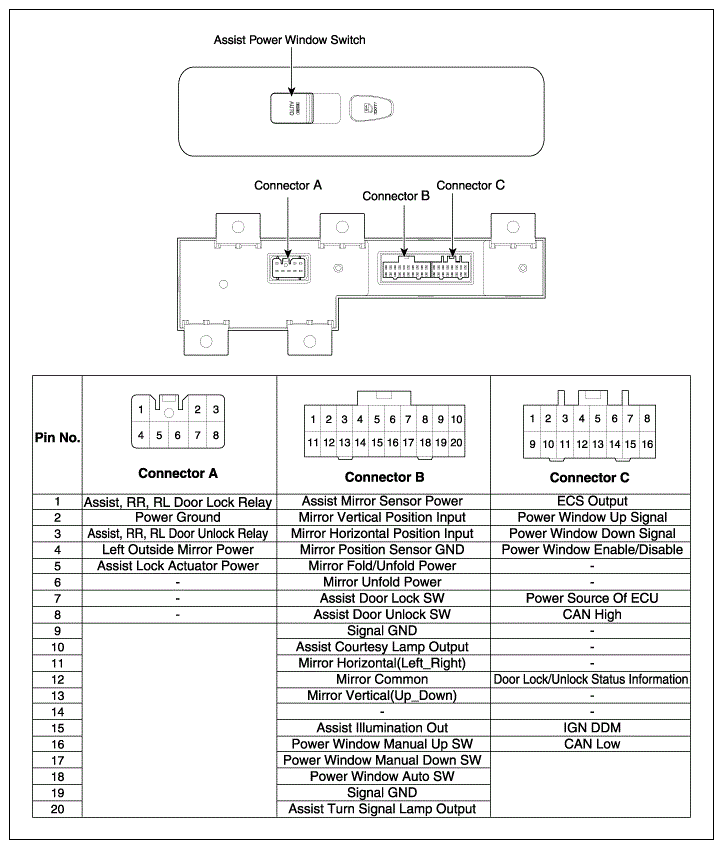

Fig 1: Identifying Assist Power Window Switch Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
