Power Window Main Switch

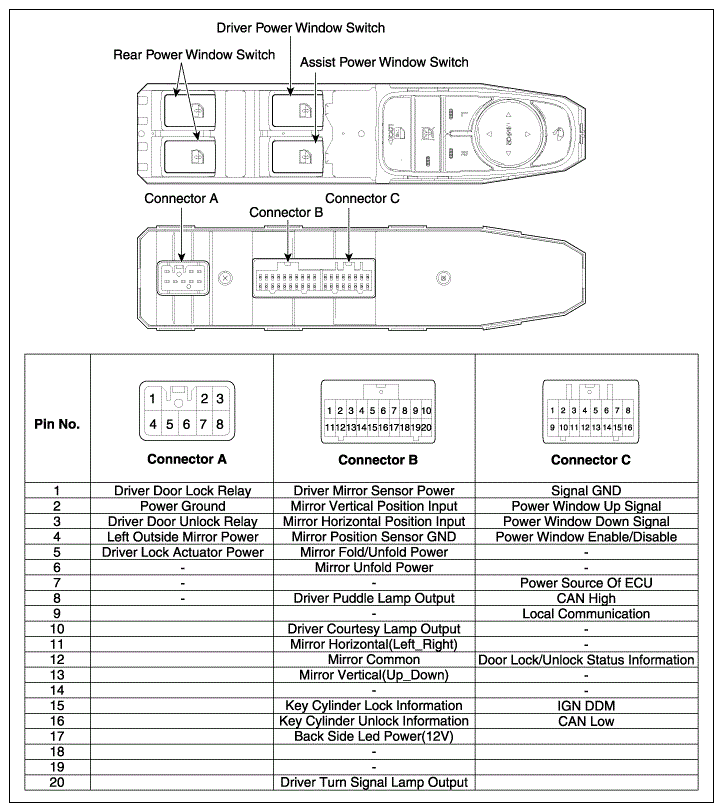

Fig 1: Identifying Power Window Main Switch Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
