Wave Form

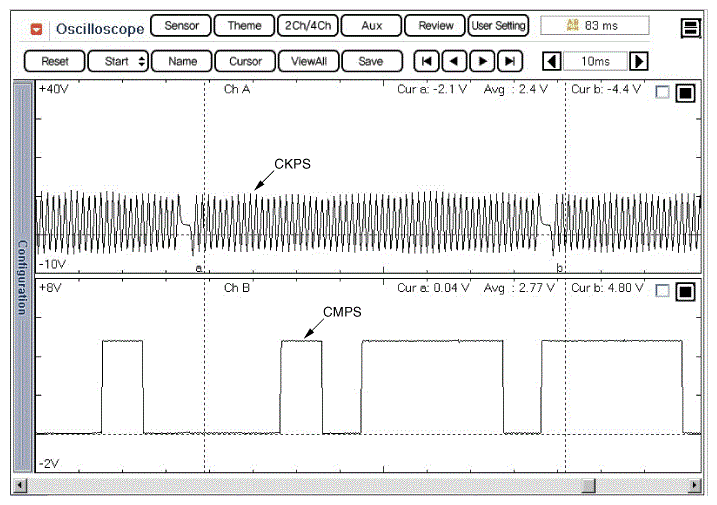

Fig 1: Display - Crankshaft Position Sensor And Camshaft Position Sensor Signal Waveform At Idle

Courtesy of HYUNDAI MOTOR AMERICA

This example shows a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) waveform at idle.
