Wave Form

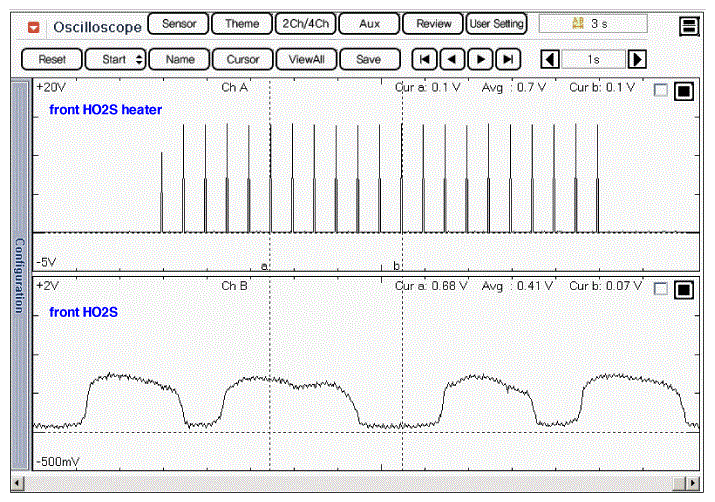

Fig 1: Display - Front HO2S And Heater Signal Waveforms At Idle
G08830239Courtesy of HYUNDAI MOTOR AMERICA

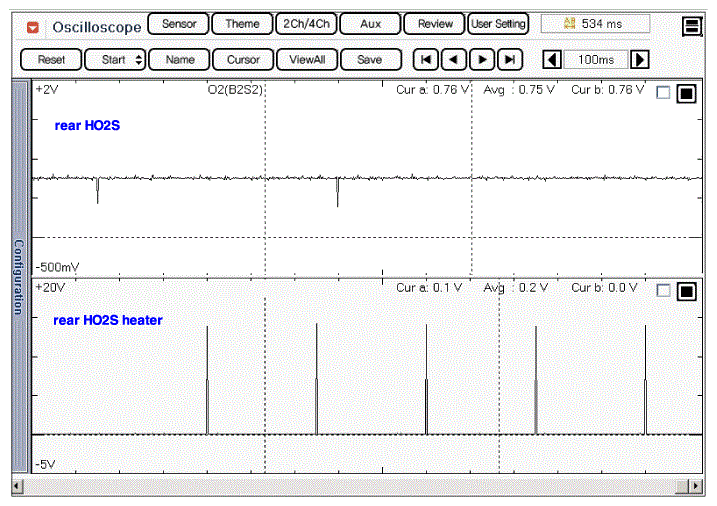

Fig 2: Display - Rear HO2S And Heater Signal Waveforms At Idle
G08830240Courtesy of HYUNDAI MOTOR AMERICA

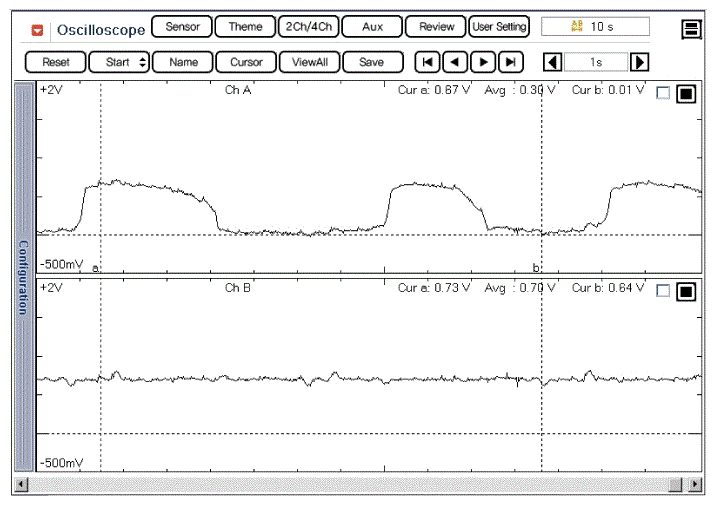

Fig 3: Display - Front HO2S And Rear HO2S Signal Waveforms
G08830241Courtesy of HYUNDAI MOTOR AMERICA
