Signal Waveform

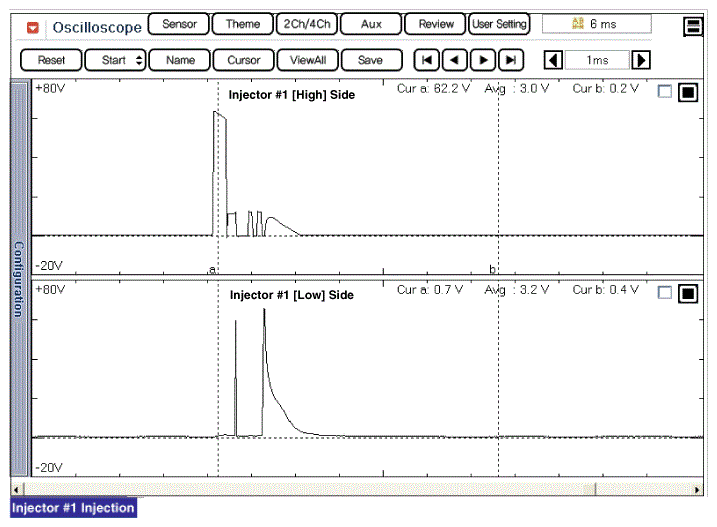

Fig 1: Display - Injector No. 1 Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
