Circuit Diagram

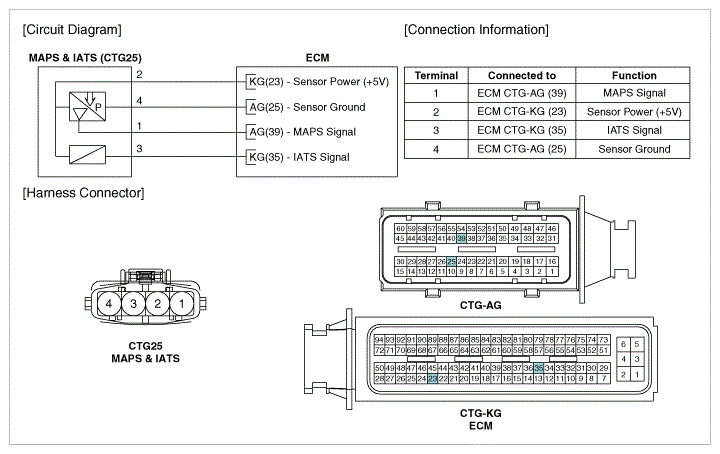

Fig 1: Intake Air Temperature Sensor - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
