Wheel Runout
- Jack up the vehicle and support it with jack stands.

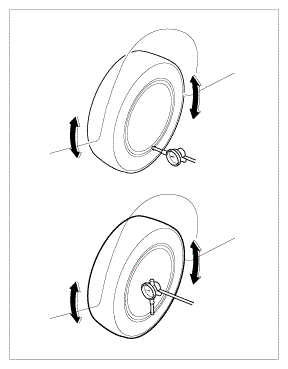

- Measure the wheel runout with a dial indicator as illustrated.
- Replace the wheel if the wheel runout exceeds the limit.
| Limit |
Radial |
Axial |
| Runout mm |
Aluminium |
0.3 |
0.3 |
Courtesy of HYUNDAI MOTOR AMERICA
