[Transmission Components]

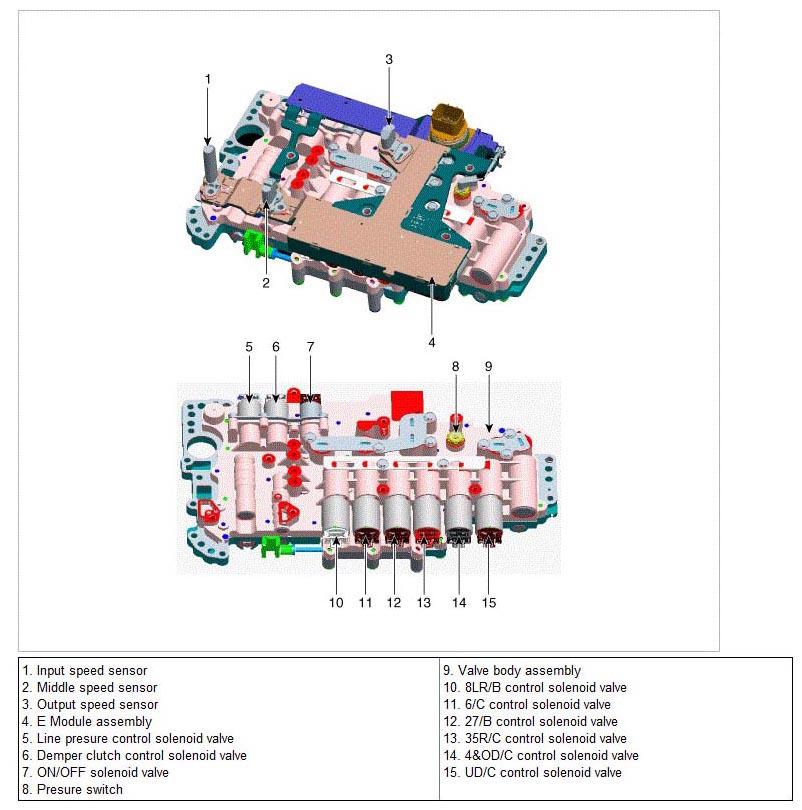

Fig 1: Automatic Transaxle Control System Components Location (Transmission Components)
G08830393Courtesy of HYUNDAI MOTOR AMERICA
