Fuel Pressure Regulator

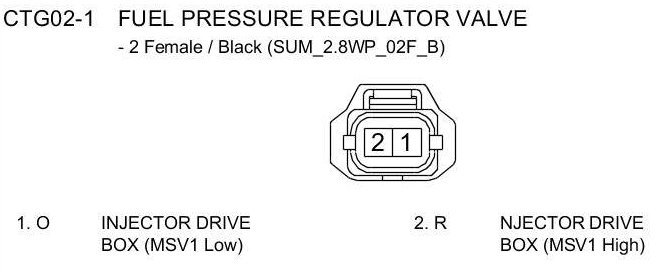

CTG02-1 Fuel Pressure Regulator Valve:

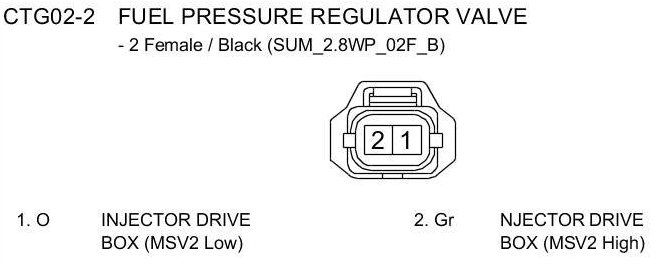

CTG02-2 Fuel Pressure Regulator Valve:
