Rear CCS Control Module RH (With CCS)

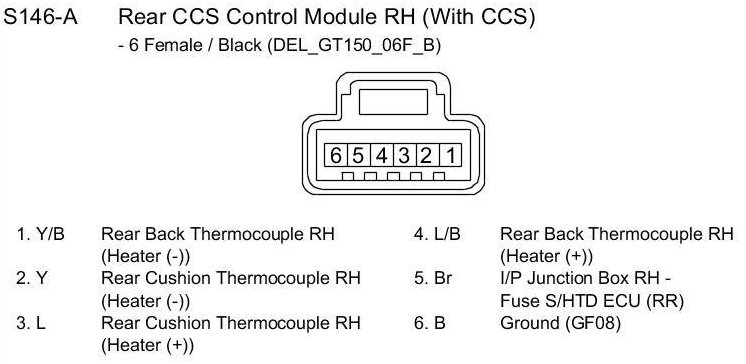

S146-A Rear CCS Control Module RH (With CCS):

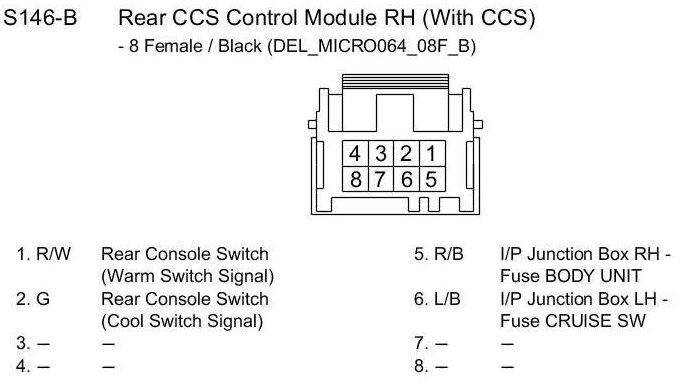

S146-B Rear CCS Control Module RH (With CCS):

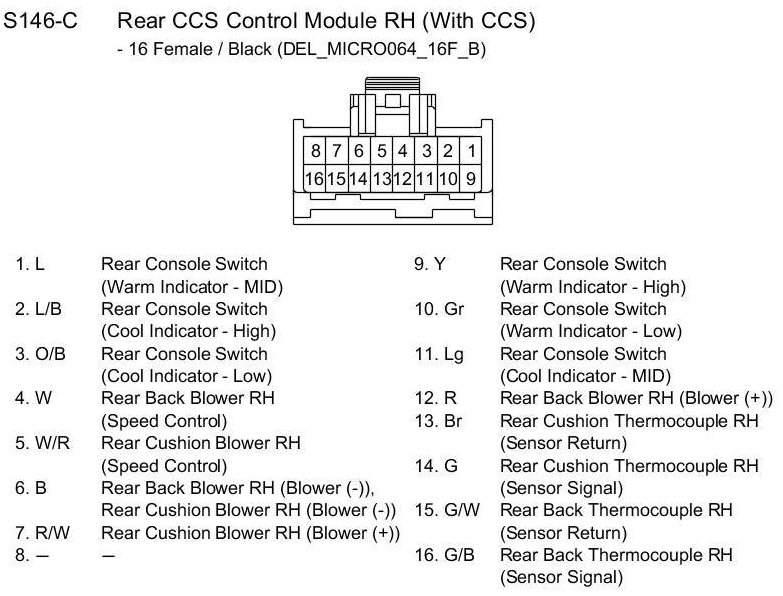

S146-C Rear CCS Control Module RH (With CCS):
