Fuel Injector Control Module





Injector Drive Box (IDB)

IDB Connector

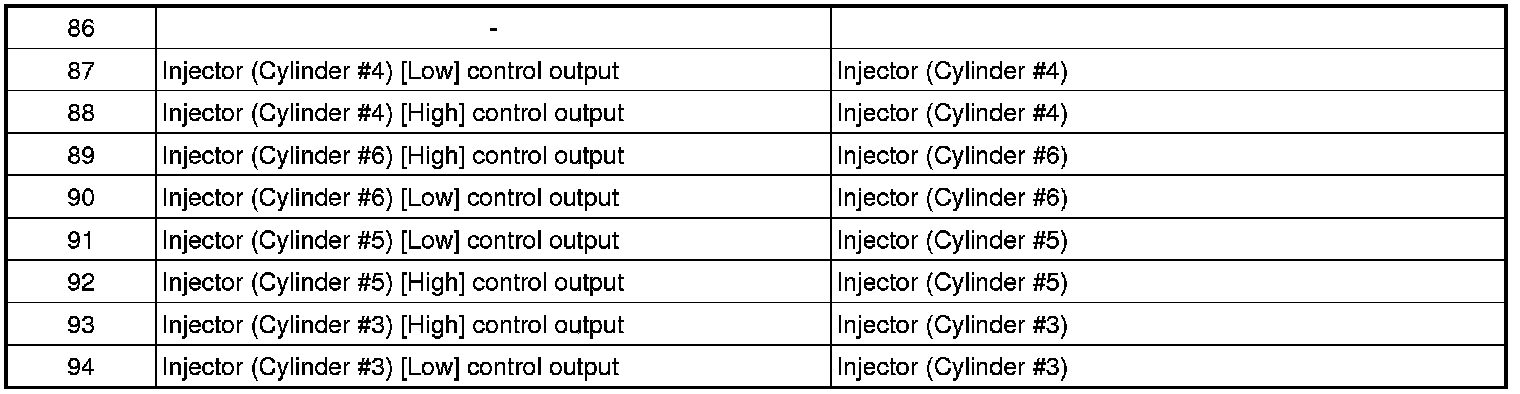

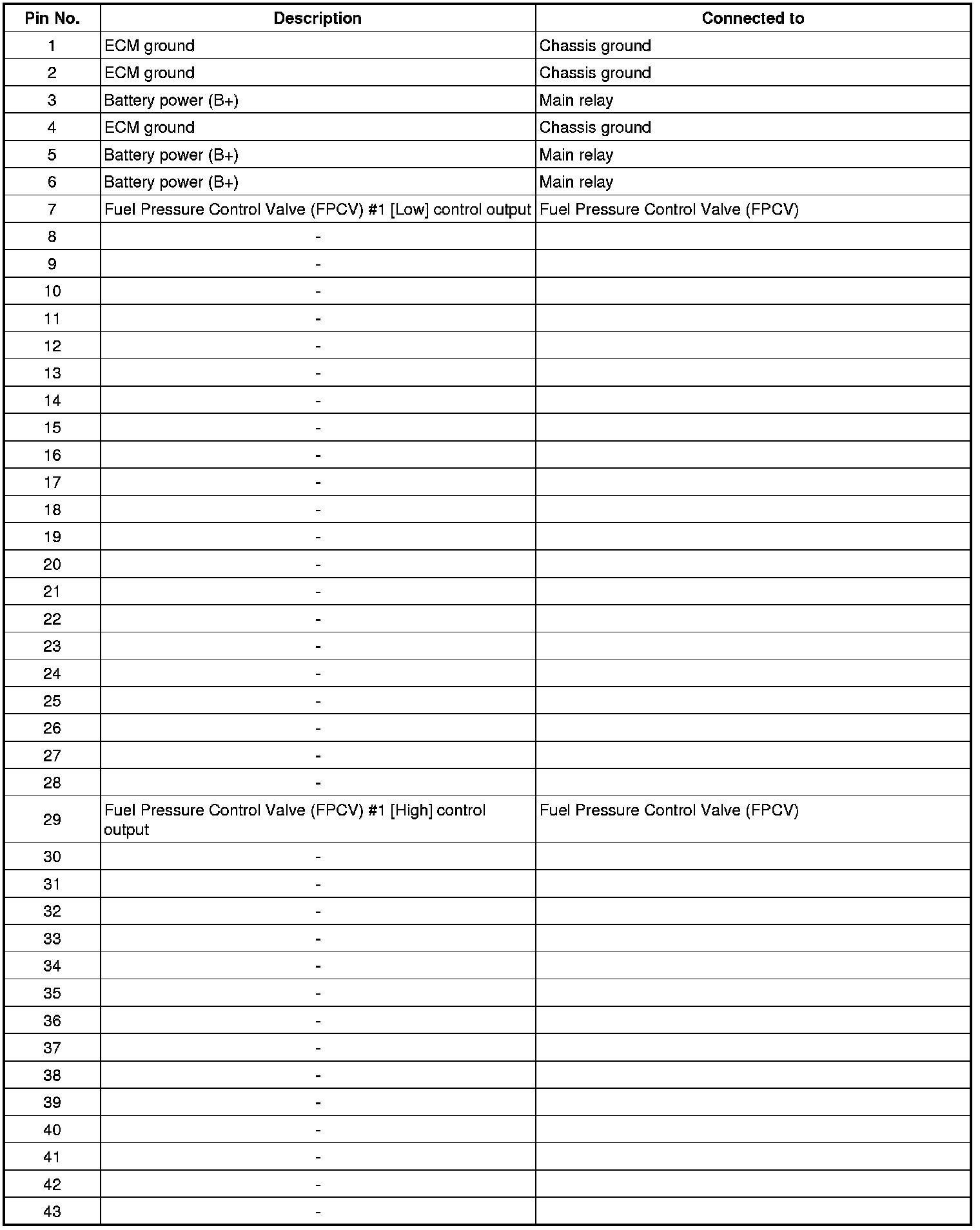

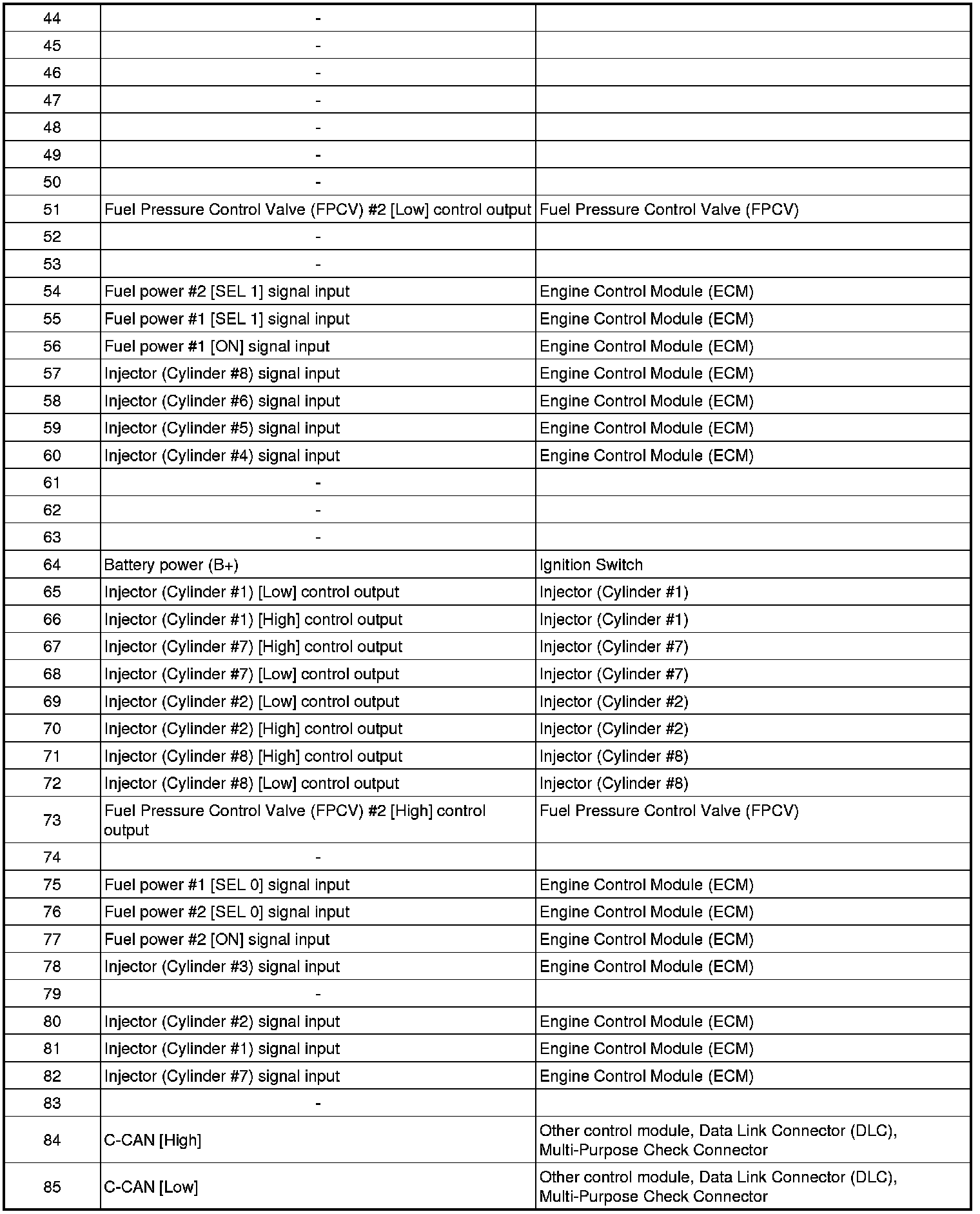

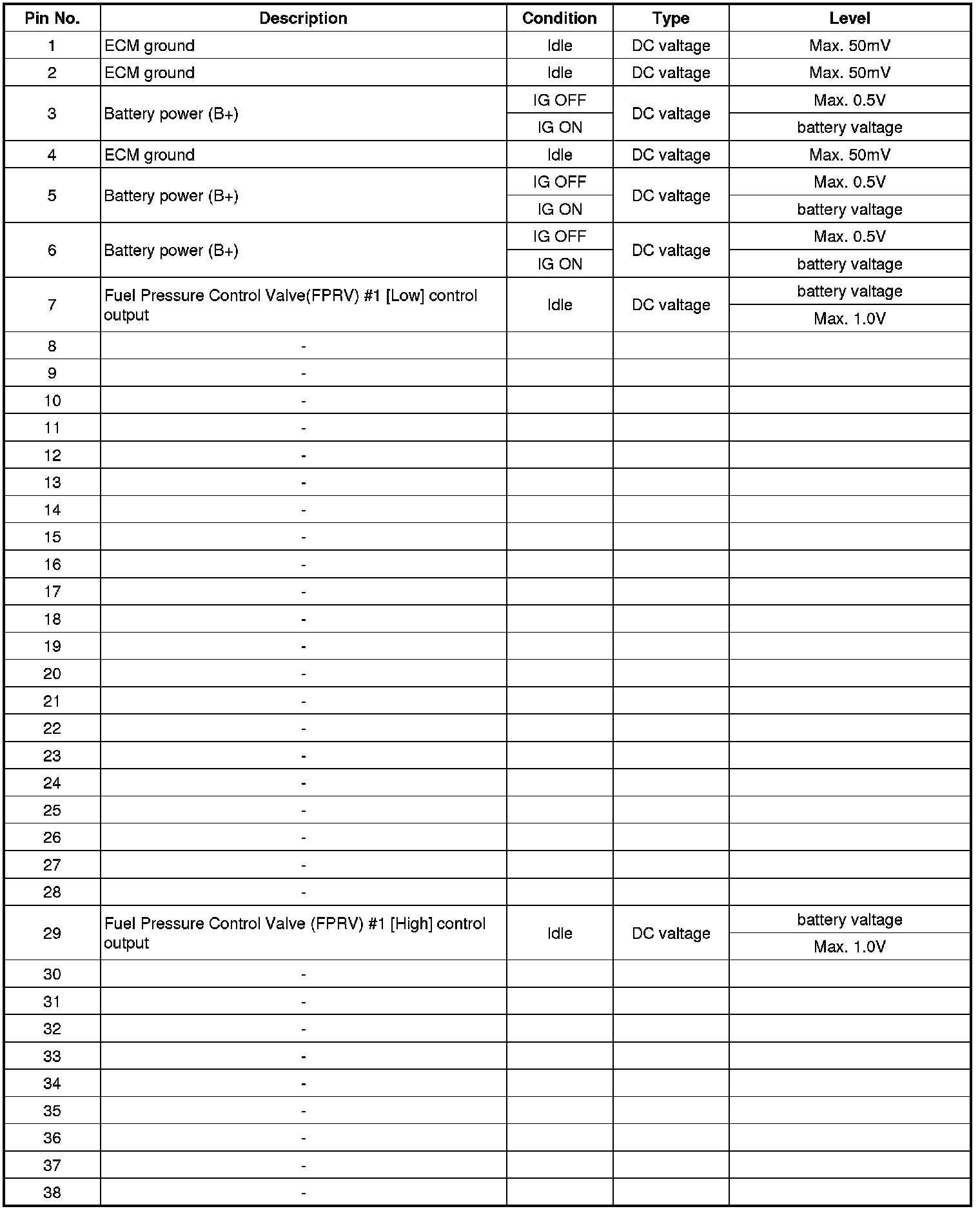

ECM Terminal Function

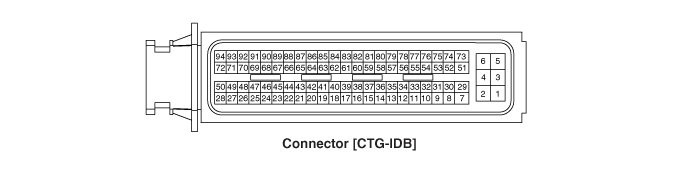

Connector [CTG-IDB]

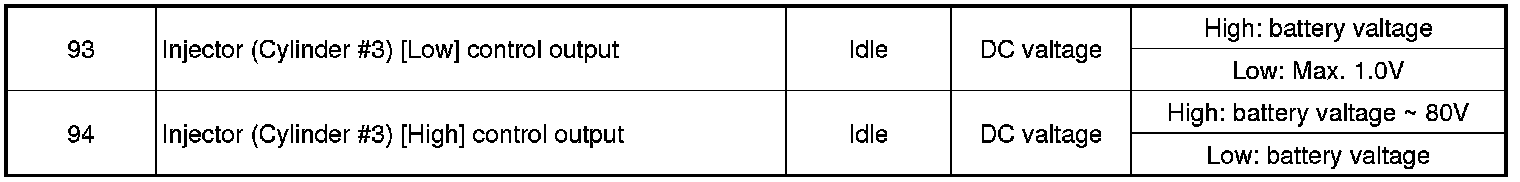

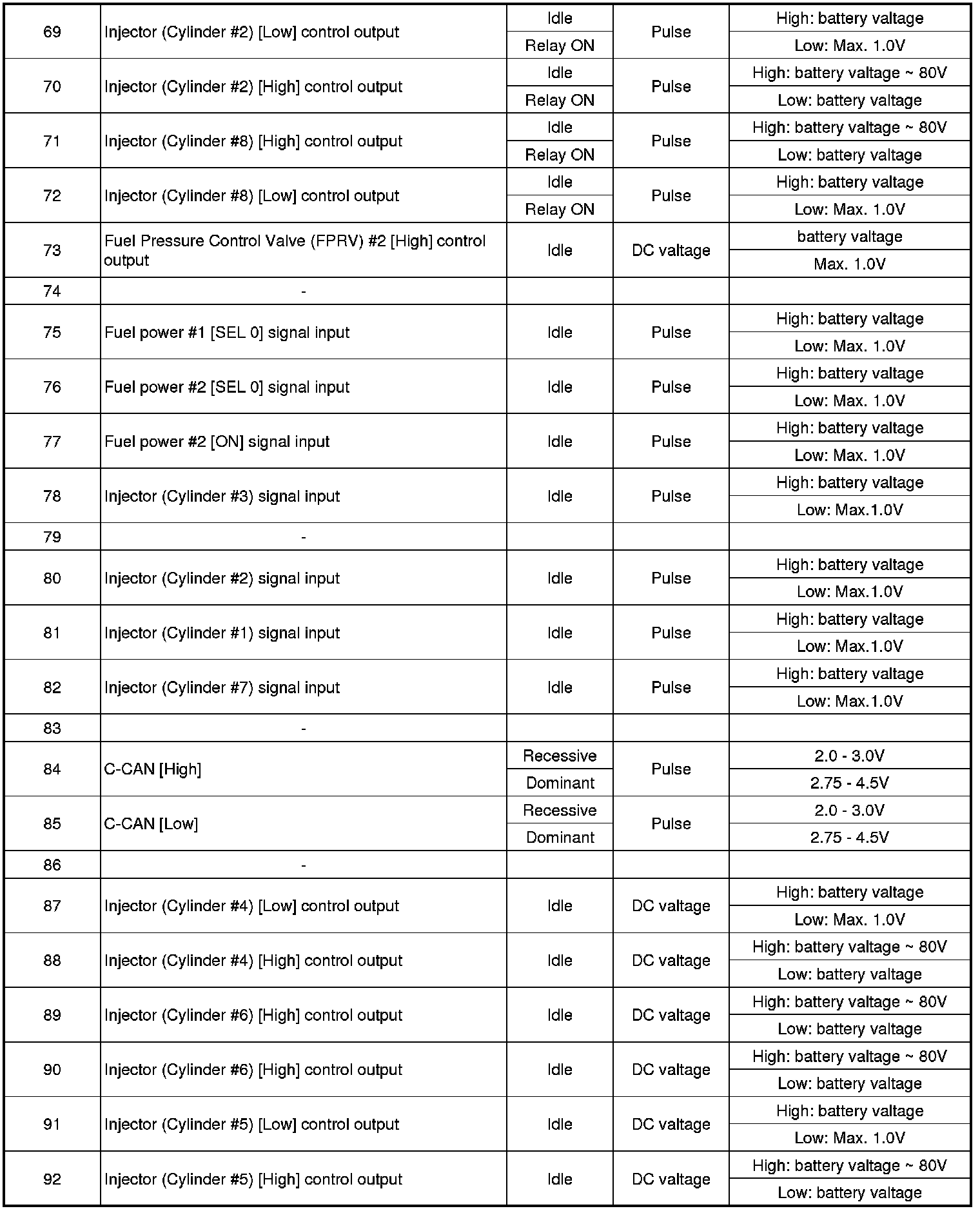

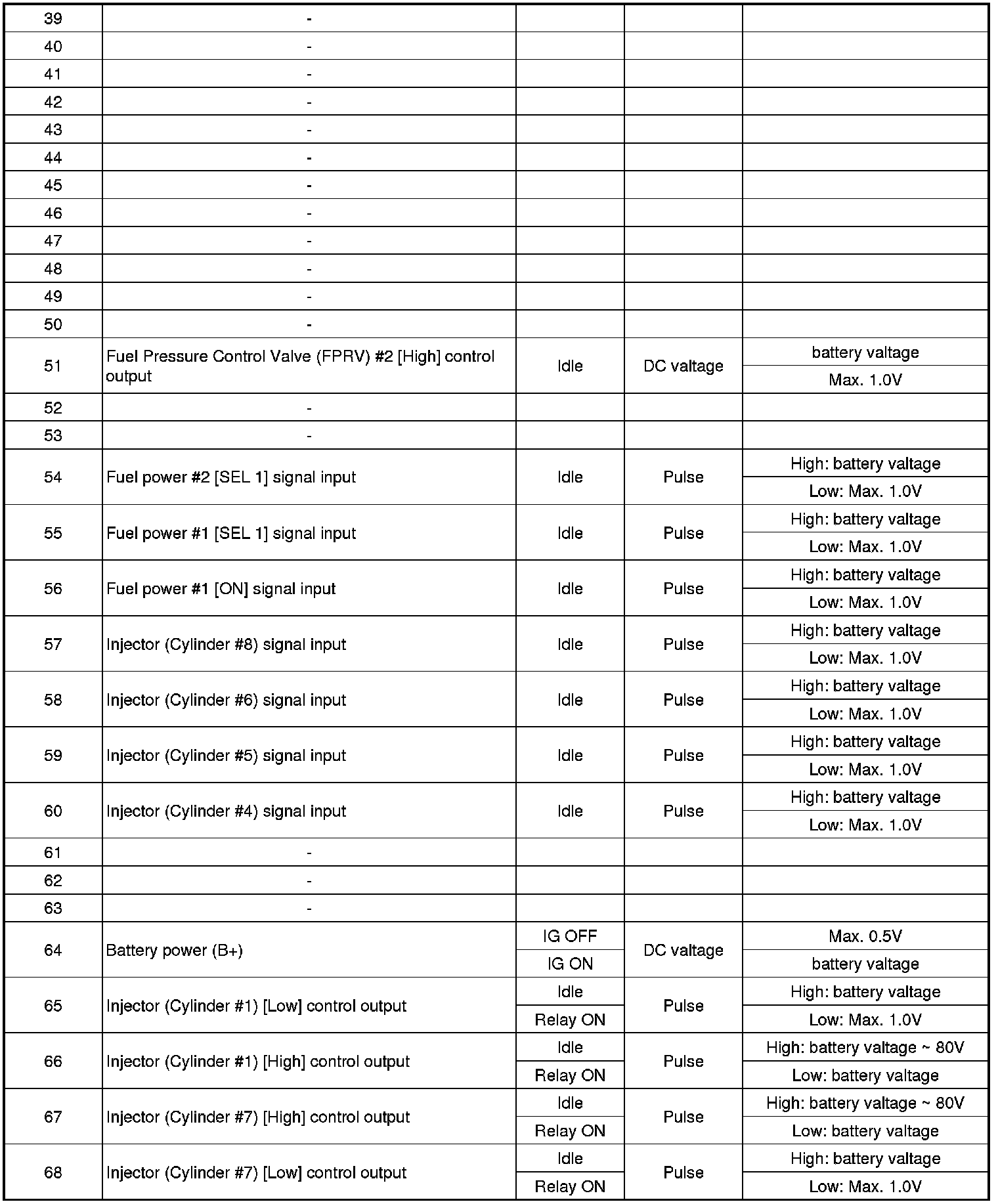

ECM Terminal Function
Connector [CTG-IDB]

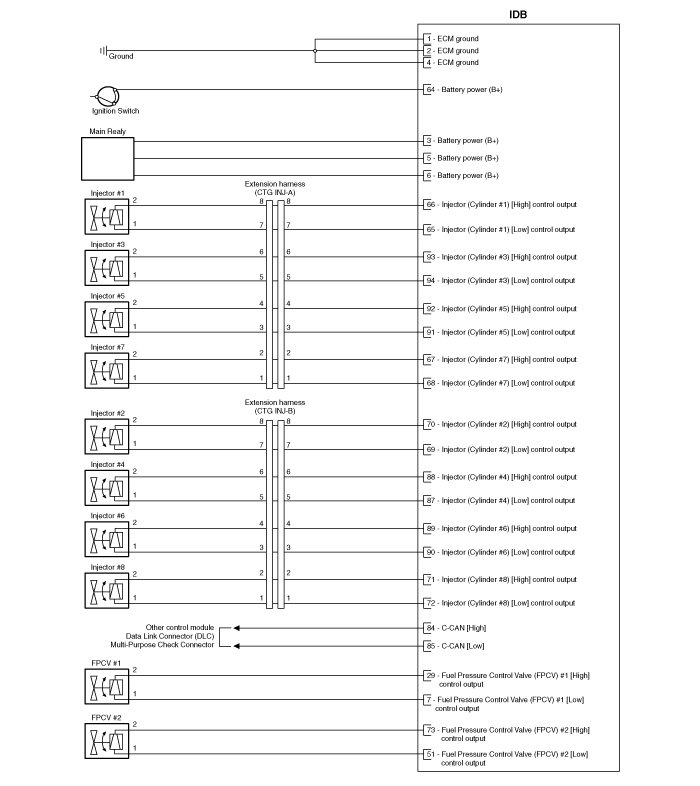

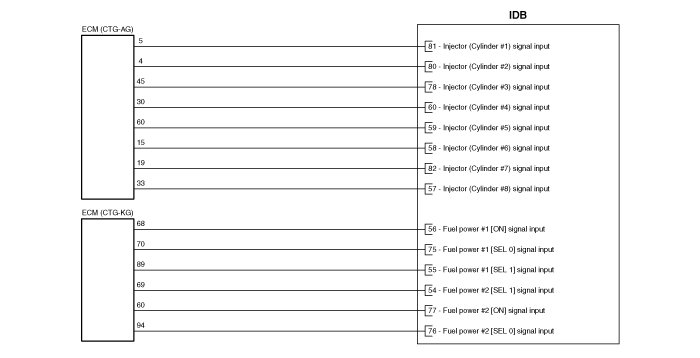

Circuit Diagram
