Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad.

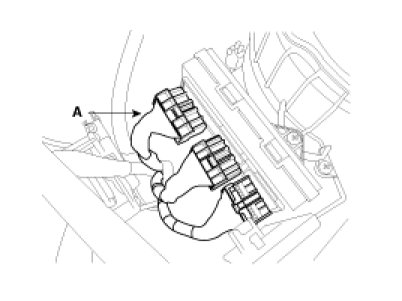

3. Disconnect the control unit connector (A).

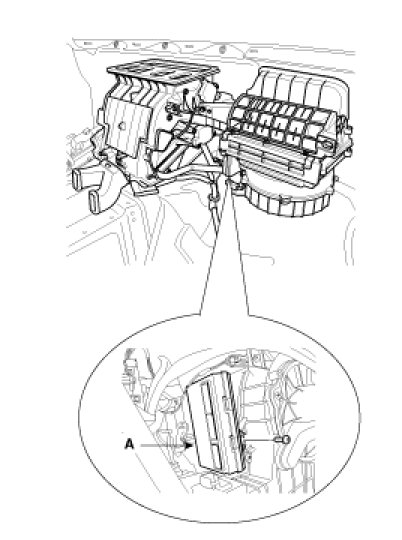

4. Remove the control unit (A).




5. Installation is the reverse order of removal.
