Fuel Filter: Service and Repair

Replacement

1. Remove the fuel pump .

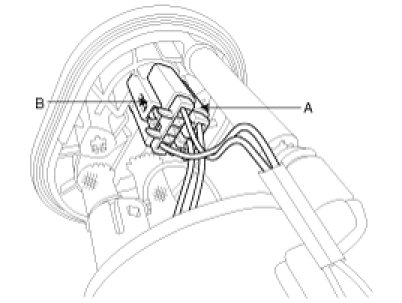

2. Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).




3. Remove the fuel sender (A).
4. Remove the assist pump (B).

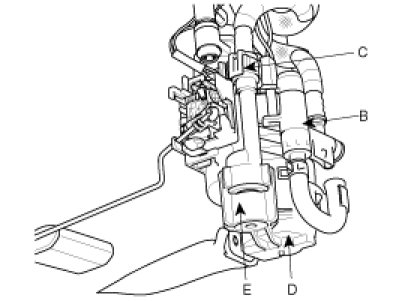

5. Disconnect the fuel feed tube (C).
6. Remove the electric pump & pre-filter assembly (D) and the fuel pressure regulator (E).

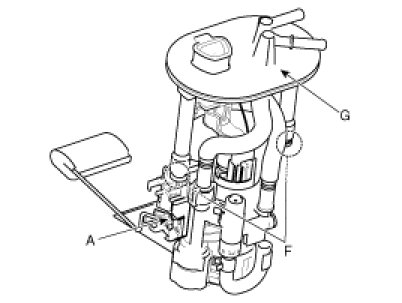

7. Remove the plate assembly (G) after removing the cushion pipe fixing clip (F).












1. Fuel Sender
2. Fuel Pressure Regulator
3. Pre-filter
4. Electric Pump
5. Fuel Filter
6. Assist Pump
