Rear Door Module (RDM)

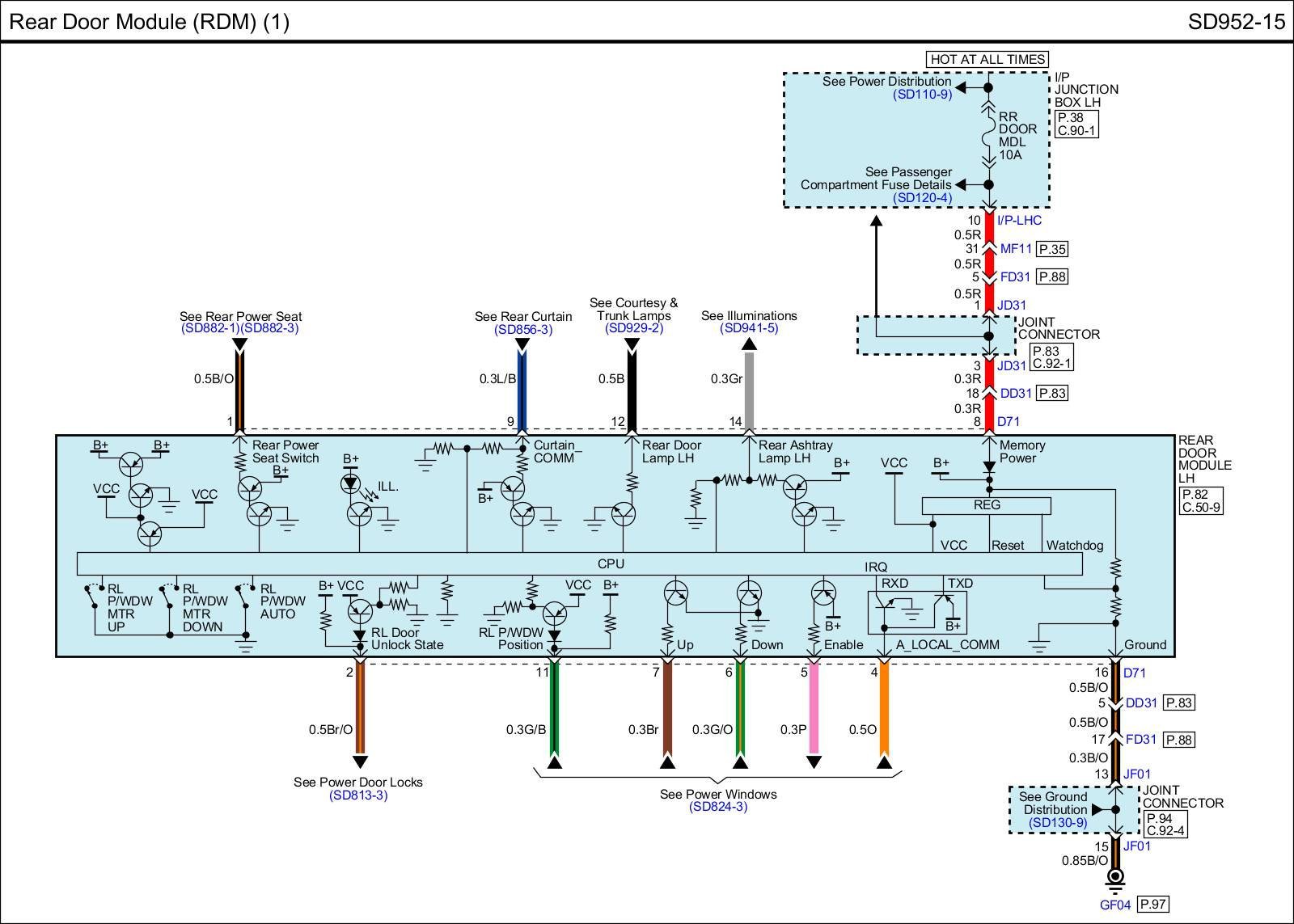

SD952-15 Rear Door Module (RDM) (1):

SD952-16 Rear Door Module (RDM) (2):

Diagrams: Other diagrams referred to by SD number (i.e SD130-4, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Locations By Photo Number
