Repair Procedures

Removal

1. Disconnect the negative(-) battery terminal.
2. Remove the center fascia panel (A).




3. Remove the DIS head unit (A).




4. Remove the crash pad lower panel (A).




5. Remove the power distribution module(A) after loosening bolt and nut.






Installation

1. Install the power distribution module.
2. Install the crash pad lower panel.
3. Install the DIS head unit.
4. Install the center fascia panel.

Inspection

PDM Diagnosis With GDS
1. It will be able to diagnose defects of Smart key with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.

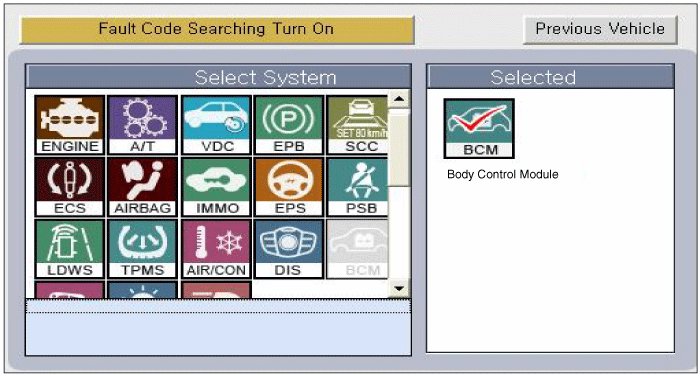

2. Select model and "IPM" menu if you want to check PDM.




3. Select "PDM" in the manu.
4. Select Input/output monitoring", if you want to check current data of PDM. It provides the input/output status of each module.




5. If you want to check PDM data operation forcefully, select "Actuation test".

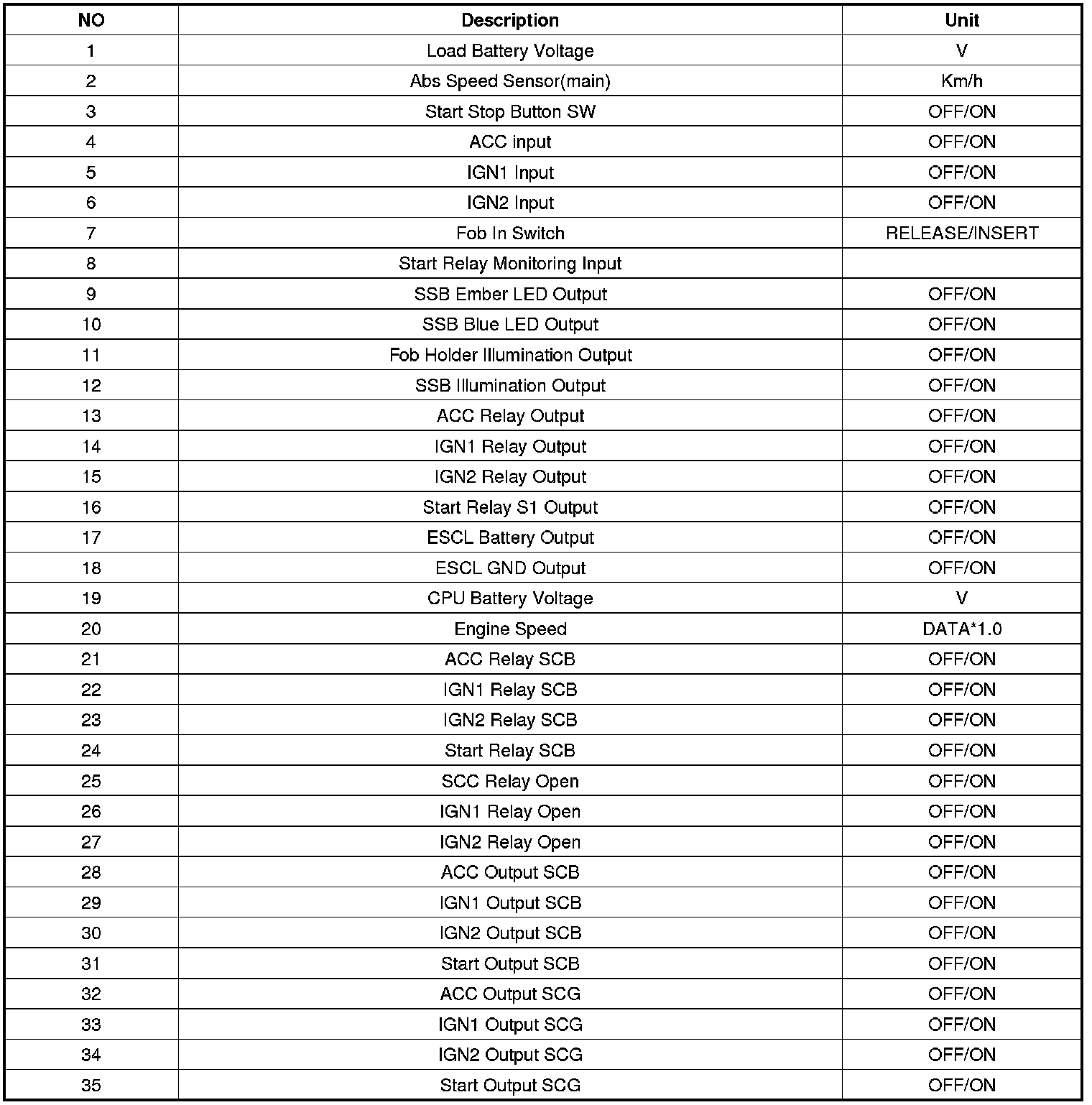

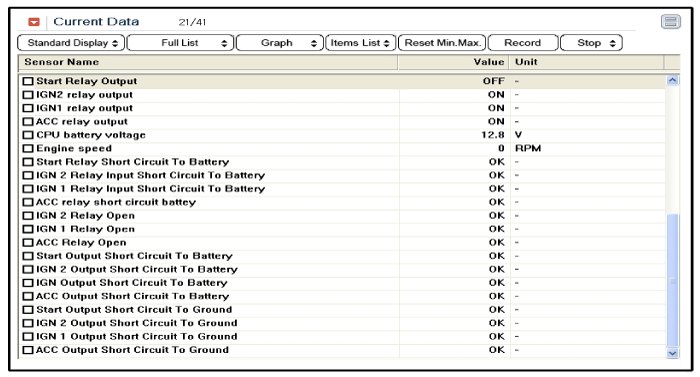

Input/output Current Data

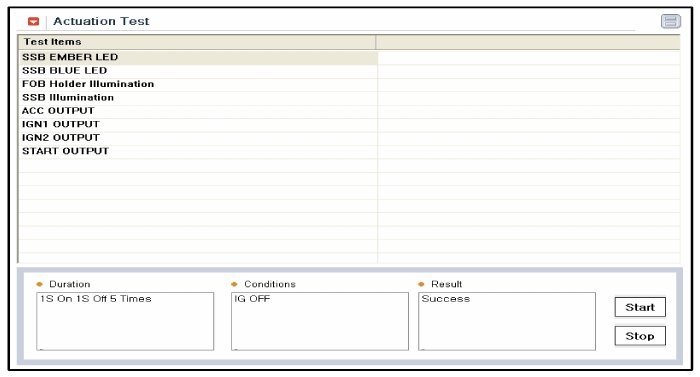

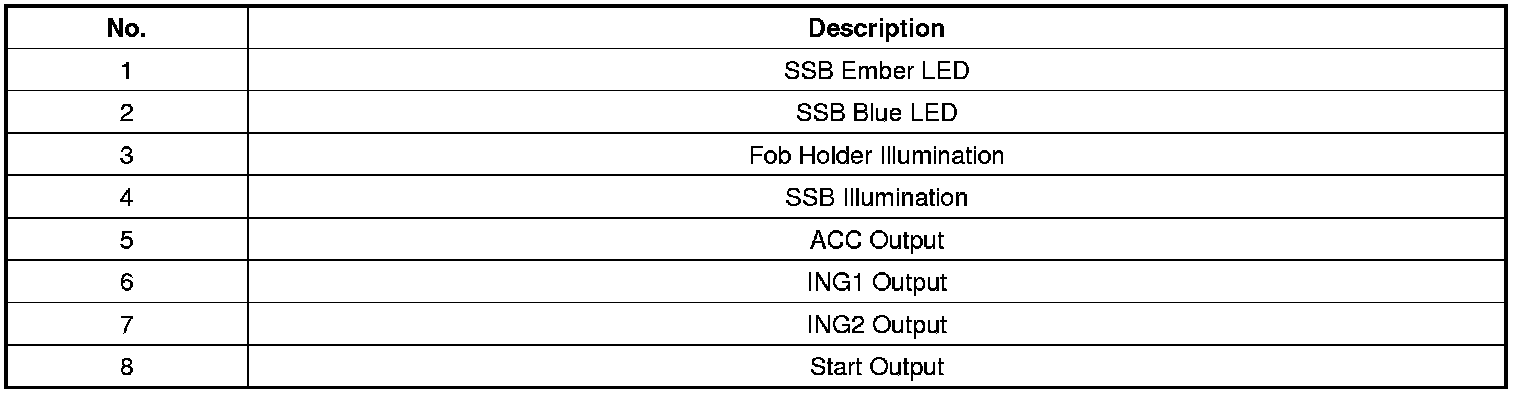

Actuation Test
