Connecting Rod, Engine





Connecting Rod

Tightening torque 22.6 - 26.5 Nm (2.3 - 2.7 kgf.m, 16.6 - 19.5 lb-ft) + 98 - 102°

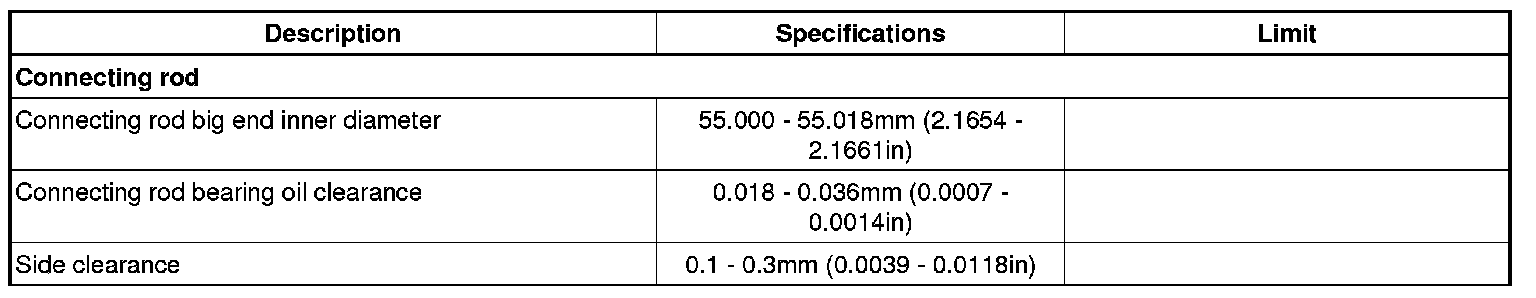

Side Clearence & Diameter
