Components Location

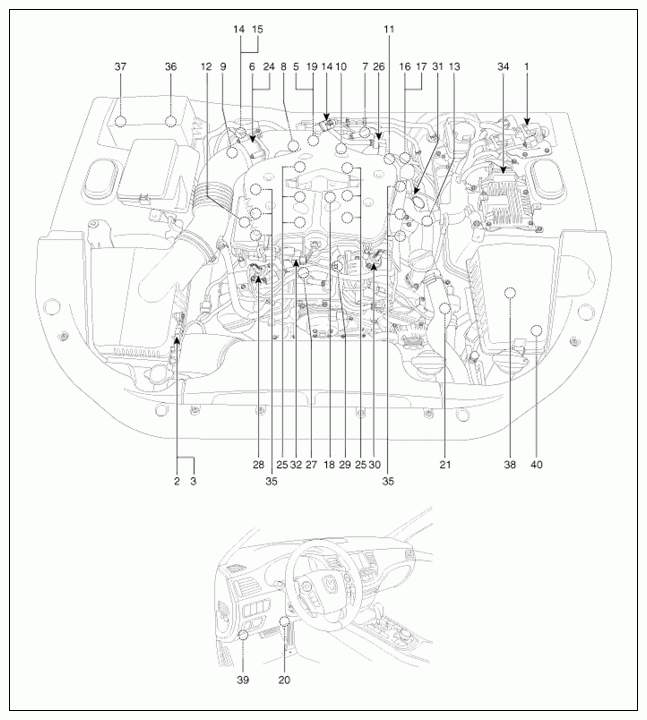

Fig 1: ECM Components Location (1 Of 6)

G08834108

Courtesy of HYUNDAI MOTOR AMERICA

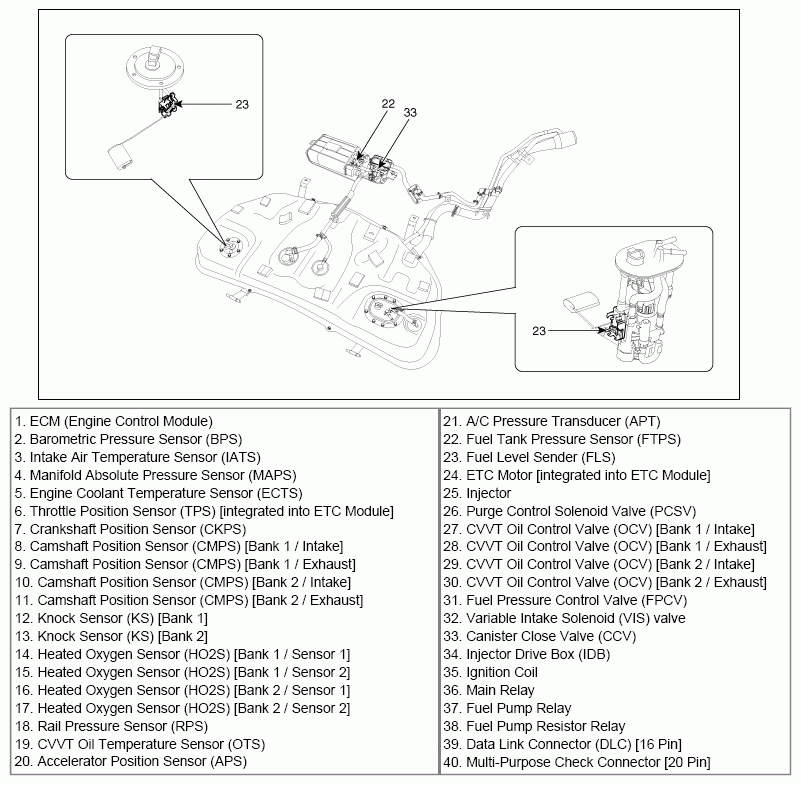

Fig 2: ECM Components Location (2 Of 6)

G08834109

Courtesy of HYUNDAI MOTOR AMERICA

Fig 3: ECM Components Location (3 Of 6)

G08834110

Courtesy of HYUNDAI MOTOR AMERICA

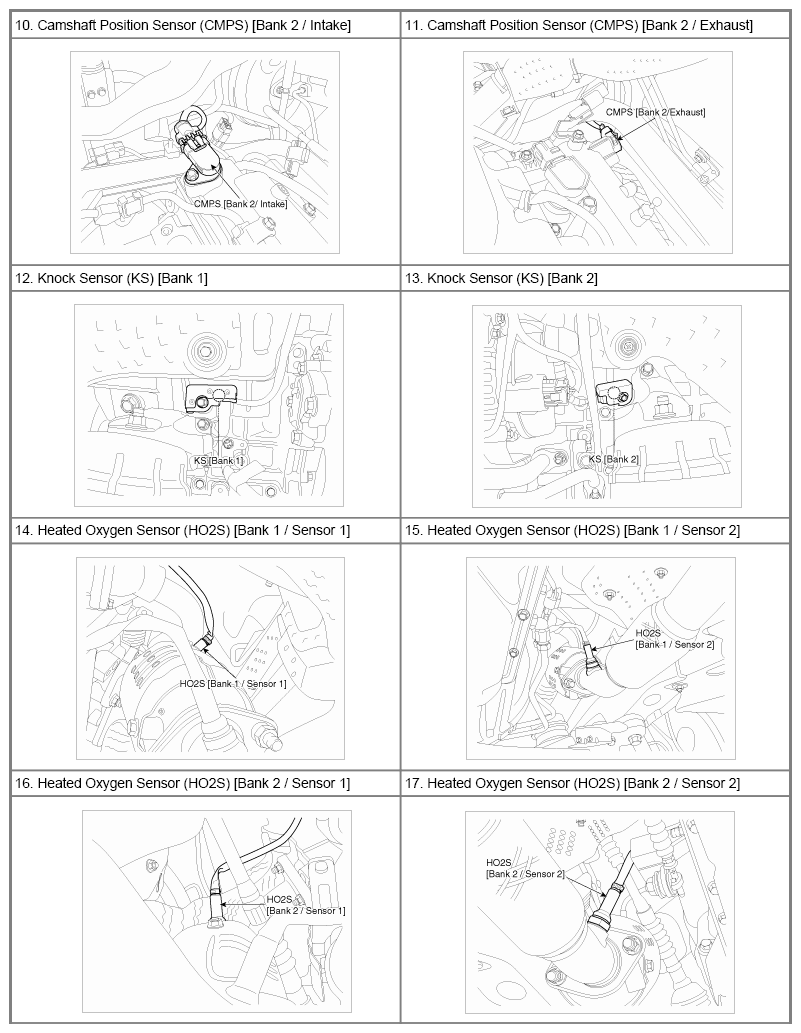

Fig 4: ECM Components Location (4 Of 6)

G08834111

Courtesy of HYUNDAI MOTOR AMERICA

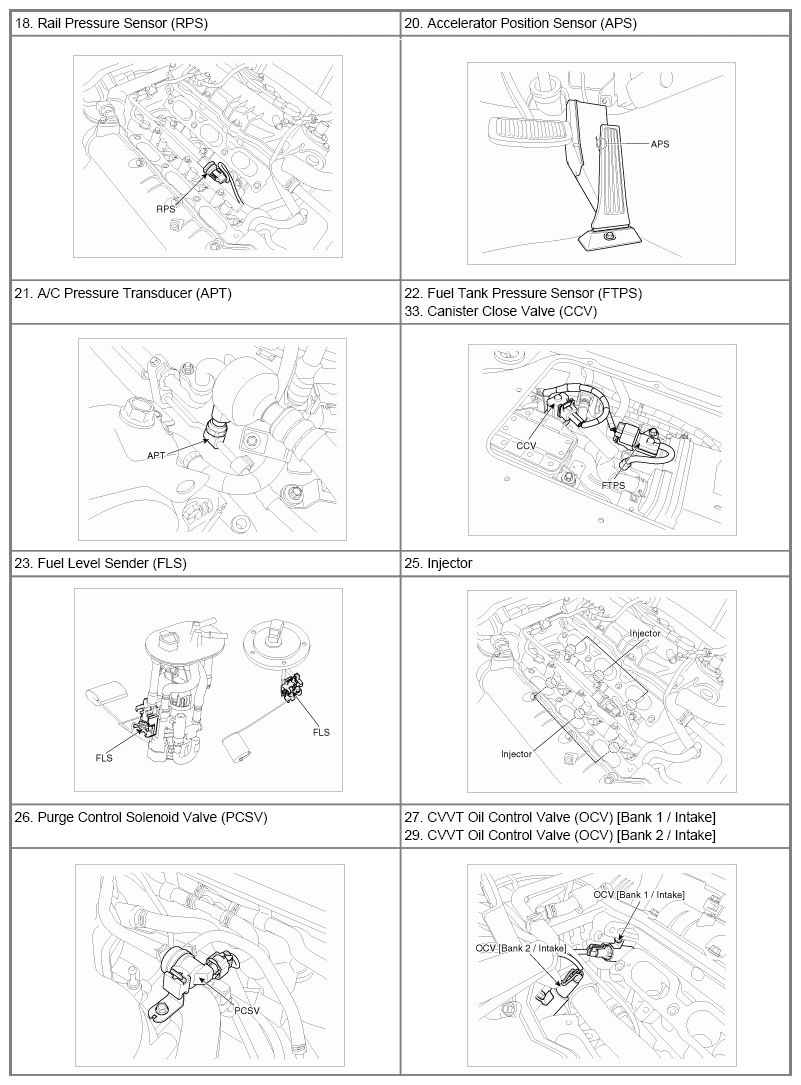

Fig 5: ECM Components Location (5 Of 6)

G08834112

Courtesy of HYUNDAI MOTOR AMERICA

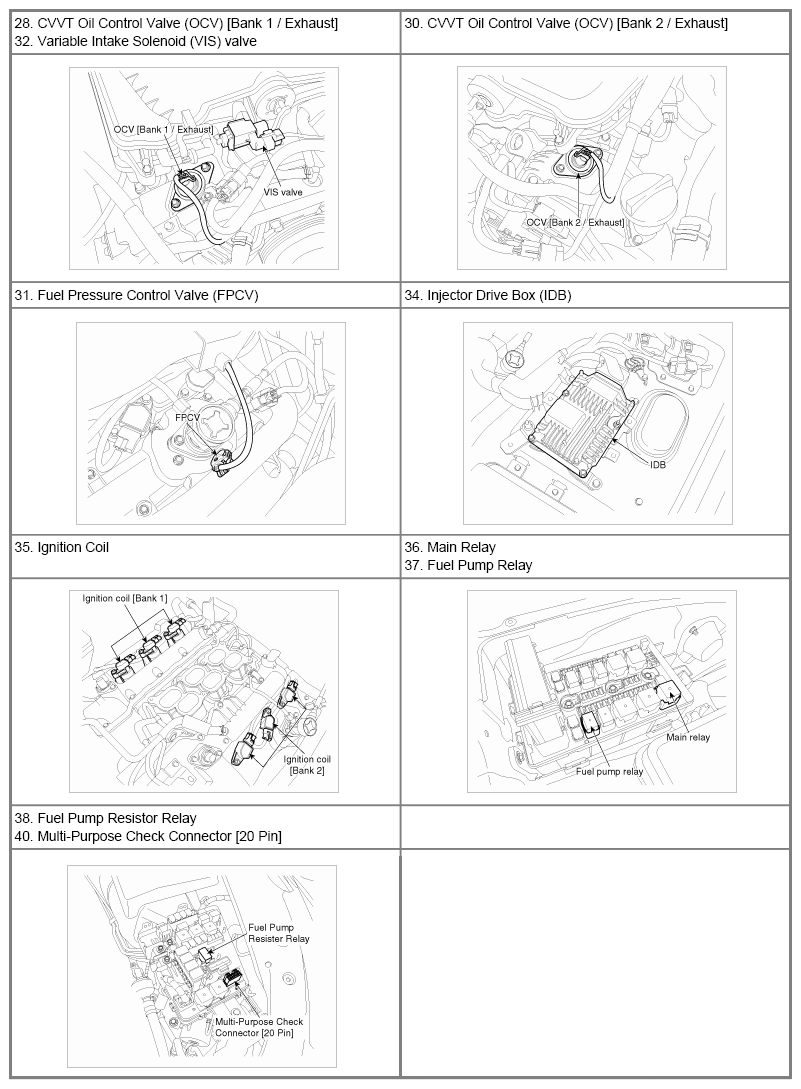

Fig 6: ECM Components Location (6 Of 6)

G08834113

Courtesy of HYUNDAI MOTOR AMERICA
