Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 3.8L
>>
Crankshaft Position Sensor (CKPS)
>>
Troubleshooting
>>
Wave Form
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Wave Form

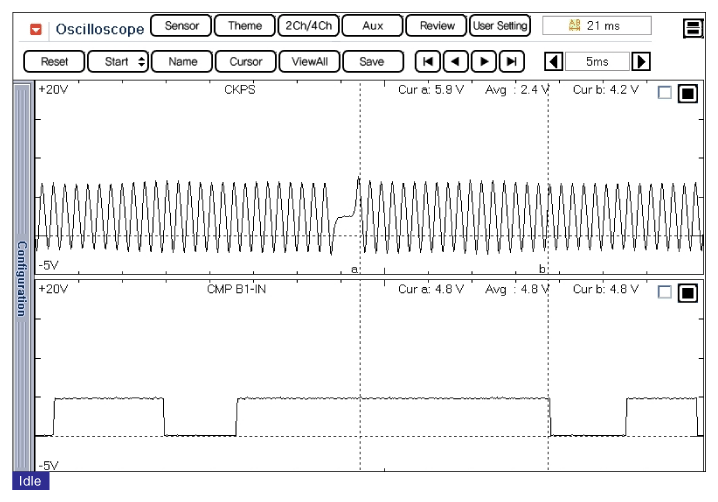

Fig 1: Display - Crankshaft Position Sensor Voltage Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
