Basic Troubleshooting Guide

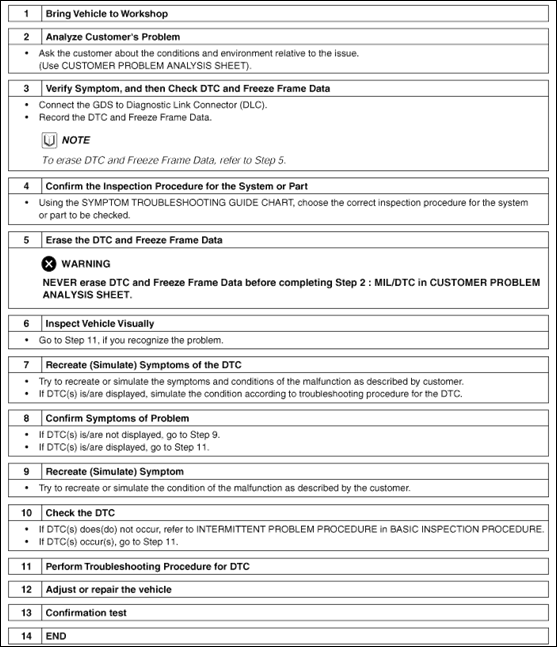

Fig 1: Fuel System Troubleshooting Sheet
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
