Accelerator Position Sensor (APS)
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

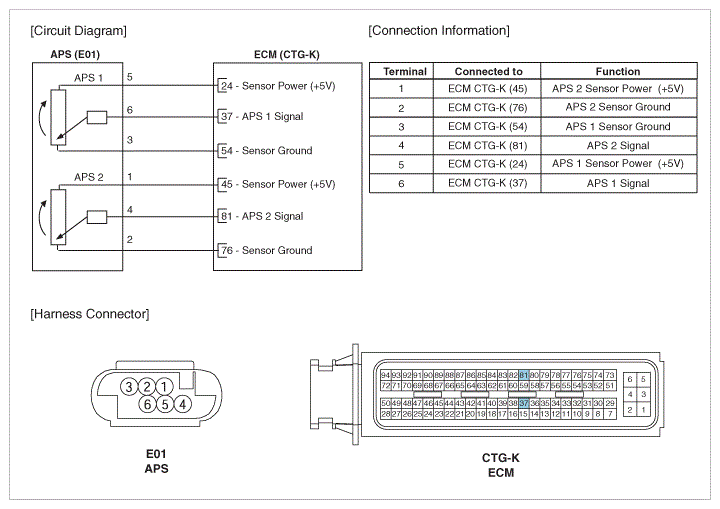

Fig 1: Accelerator Position Sensor (APS) Circuit Diagram
