Wave Form

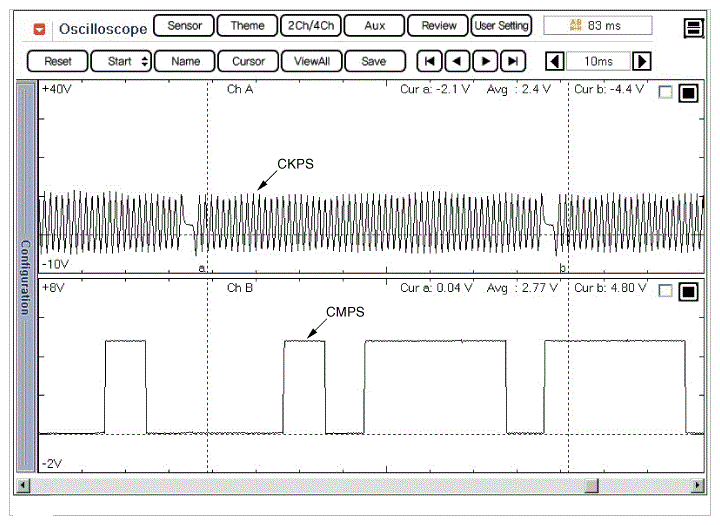

Fig 1: Display - Crankshaft Position Sensor (CKPS) And Camshaft Position Sensor (CMPS) Waveform At Idle
G08819203Courtesy of HYUNDAI MOTOR AMERICA

This example shows a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) waveform at idle.
