ECM Harness Connector

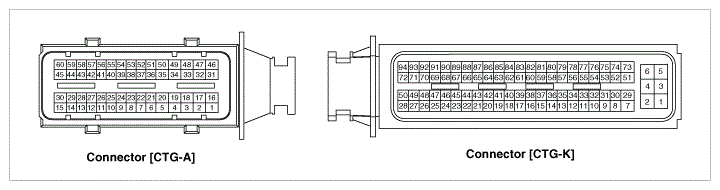

Fig 1: Identifying ECM Harness Connector
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
