Rear Power Window Switch
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Rear Power Window Switch

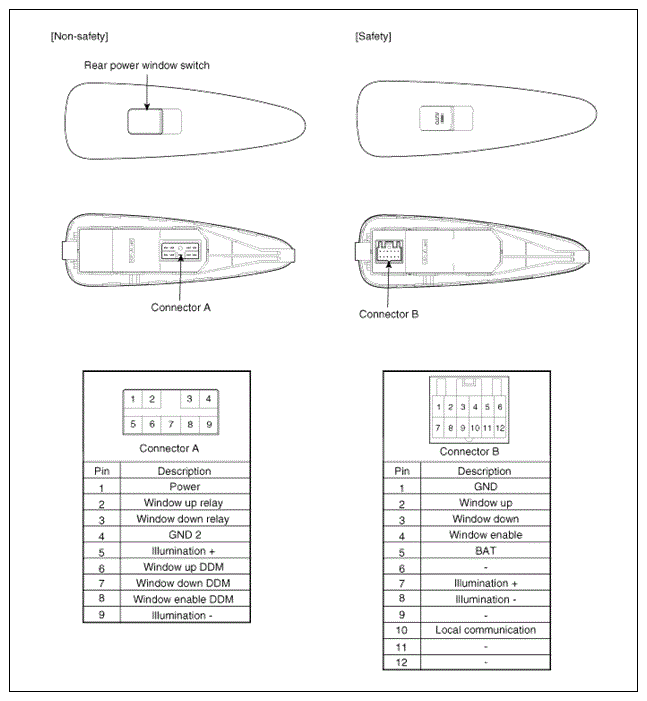

Fig 1: Identifying Rear Power Window Switches And Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
