Genesis 5.0
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Button Engine Start System
>>
PDM (Power Distribution Module)
>>
Schematic Diagrams
>>
System circuit diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System circuit diagram

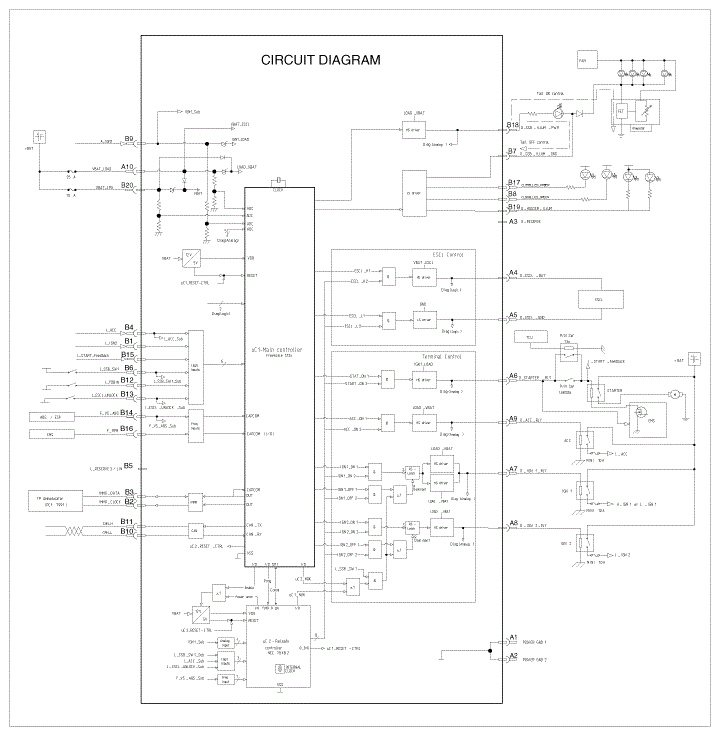

Fig 1: Power Distribution Module - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
