Wave Form

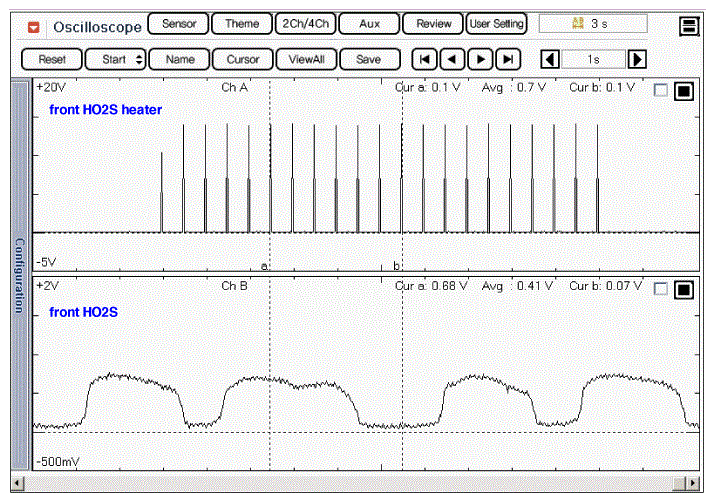

Fig 1: Display - Front HO2S And Heater Signal Waveforms (At Idle)
G08822881Courtesy of HYUNDAI MOTOR AMERICA

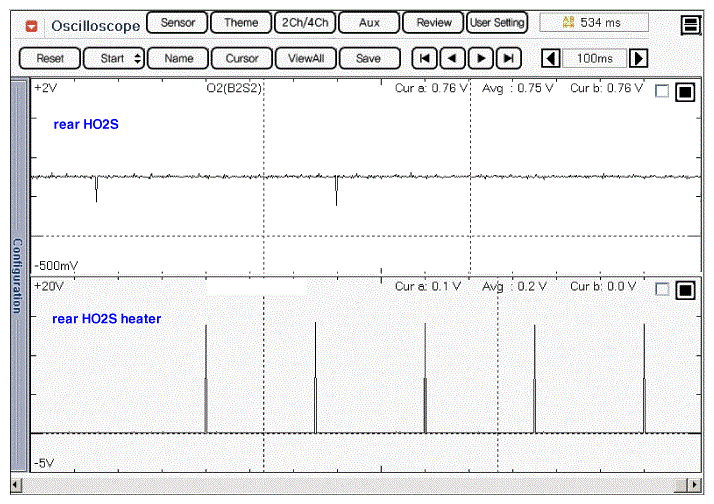

Fig 2: Display - Rear HO2S And Heater Signal Waveforms (At Idle)
G08822882Courtesy of HYUNDAI MOTOR AMERICA

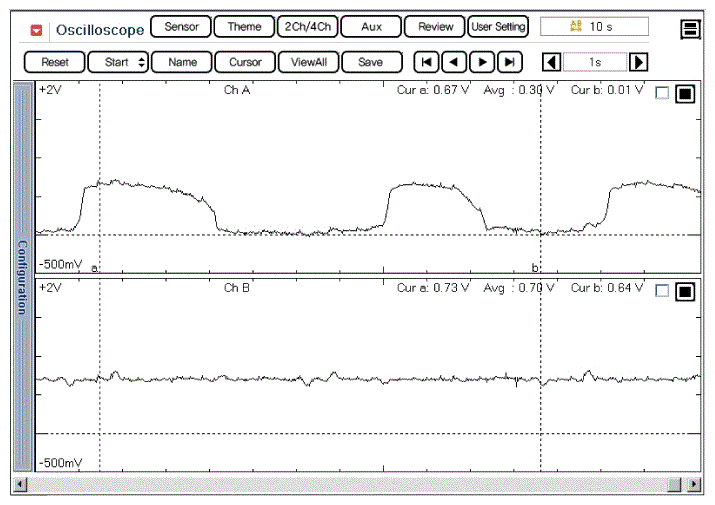

Fig 3: Display - Front And Rear HO2S Typical Waveforms
G08822883Courtesy of HYUNDAI MOTOR AMERICA
