Circuit Diagram

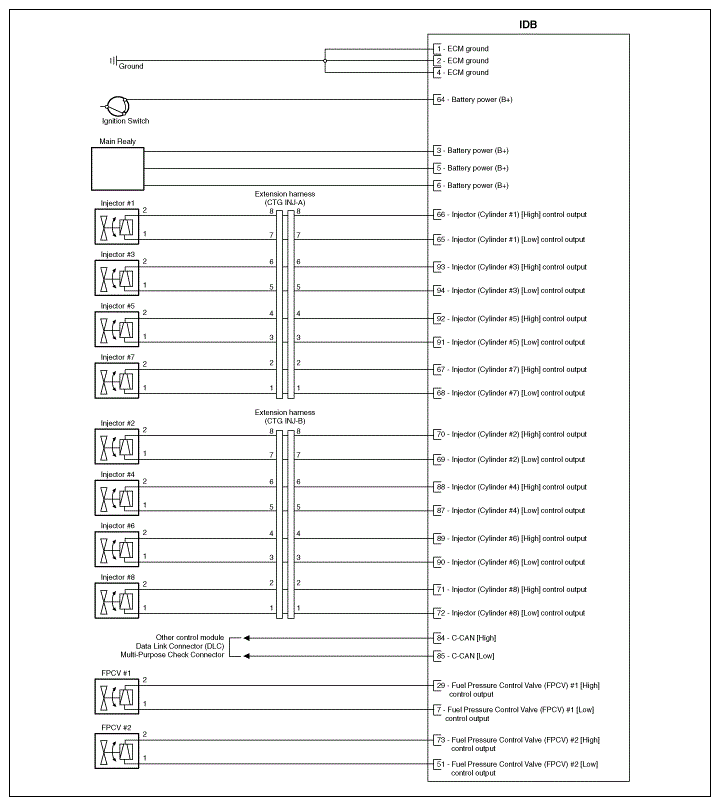

Fig 1: Injector Drive Box - Circuit Diagram (1 Of 2)
G08822843Courtesy of HYUNDAI MOTOR AMERICA

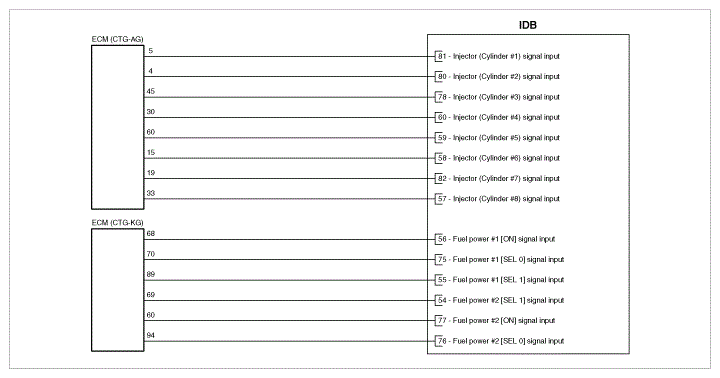

Fig 2: Injector Drive Box - Circuit Diagram (2 Of 2)
G08822844Courtesy of HYUNDAI MOTOR AMERICA
