Axle Nut

Axle Nut

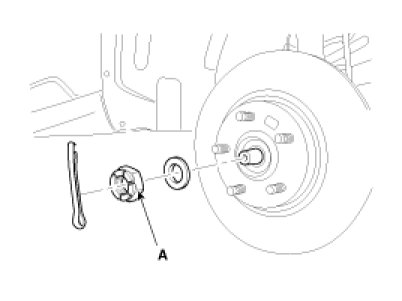

Remove castle nut (A) from the front hub under applying the break.

Tightening torque 196.1 - 274.5N.m(20.0 - 28.0 Kgf.m, 144.6 - 202.5 lb.ft)






CAUTION: The washer (B) should be assembled with convex surface outward when installing the castle nut (A) and split pin (C) Also, don't reuse split pin (C) when reassembling.
