Repair Procedures

Replacement

1. Remove the lower panel.
2. Remove the IPM.
3. Remove the parking brake pedal.

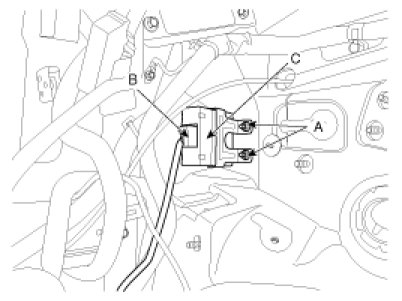

4. Remove the 4WD ECU(C) after removing the nut (A-2ea) and the connector (B).

Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
