Pressure Sensor

Inspection

NOTE:
If you have trouble code related to the pressure sensor (P1825, P1826, P1827, P1828), check pressure sensor according to the inspection process.

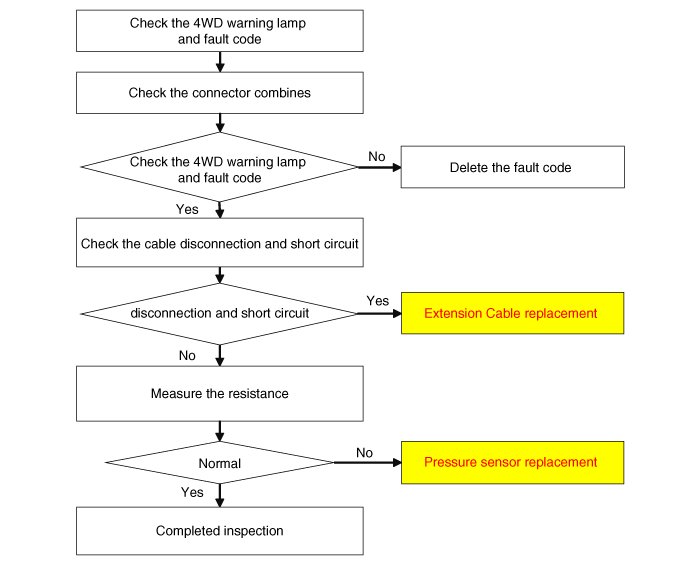

Pressure Sensor Inspection Procedure




Measure the resistance of pressure sensor
1. Turn ignition switch OFF.
2. Disconnect the pressure sensor connector.
3. Measure resistance between sensor terminal and terminal.
4. Check the measured resistance.






Removal

1. Remove the coupling assembly.

2. Remove the extension Cable (A).




3. Remove the pressure sensor (A) with 24mm socket.

CAUTION:
- Keep going horizontal state to prevent leaks during remove the pressure sensor.

Tightening torque:
7.8 - 9.8 N.m (0.8 - 1.0kgf.m, 5.8 - 7.2 lb-ft)





Installation

CAUTION:
- Check the cleanliness of the pressure sensor before installation.
- Check the pressure sensor O-ring (A).





1. Installation is the reverse of removal.
