Console Assembly Replacement

NOTE:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the knob (A).

Fig 1: Removing Knob
Courtesy of HYUNDAI MOTOR CO.
Using a screwdriver, remove the floor console tray (A).

Fig 2: Identifying Floor Console Tray
Courtesy of HYUNDAI MOTOR CO.
Using a screwdriver, remove the floor console bezel (A).

Fig 3: Identifying Floor Console Bezel
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connectors (B).

Fig 4: Identifying Electrical Connectors
Courtesy of HYUNDAI MOTOR CO.
Using a screwdriver, remove the console upper cover (A).

Fig 5: Identifying Console Upper Cover
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (B).

Fig 6: Identifying Electrical Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the console tray mat (A).

Fig 7: Identifying Console Tray Mat
Courtesy of HYUNDAI MOTOR CO.
Remove the extension side cover (A).

Fig 8: Identifying Extension Side Cover
Courtesy of HYUNDAI MOTOR CO.

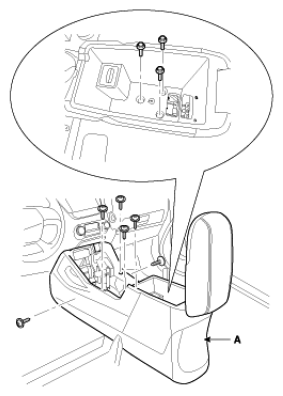

After loosening the mounting bolts and screws, then remove the floor console assembly (A).

Fig 9: Identifying Floor Console Assembly
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
- Replace any damage clips.
