Cowl Cross Bar Assembly Replacement

Remove the following items.
1. Front seat
  (Refer to FRONT SEAT .)
2. Floor console
  (Refer to CONSOLE .)
3. Crash pad
4. Cowl top cover
  (Refer to the COWL TOP COVER .)
Disconnect the blower unit connectors (A).
(Refer to the BLOWER .)

Fig 1: Identifying Blower Unit Connector (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

Fig 2: Identifying Blower Unit Connector (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connectors

Fig 3: Identifying Electrical Connectors
Courtesy of HYUNDAI MOTOR CO.
Disconnect the airbag (A) and antenna (B) connectors.

Fig 4: Identifying Airbag And Antenna
Courtesy of HYUNDAI MOTOR CO.
Push the lock pin, disconnect the driver's wiring connectors.

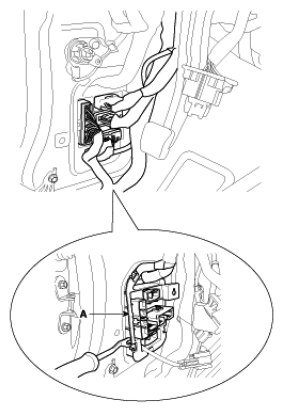

Using a screwdriver, remove the wiring cover (A).

Fig 5: Identifying Wiring Cover
Courtesy of HYUNDAI MOTOR CO.
Push the lock pin, disconnect the passenger's wiring connectors.

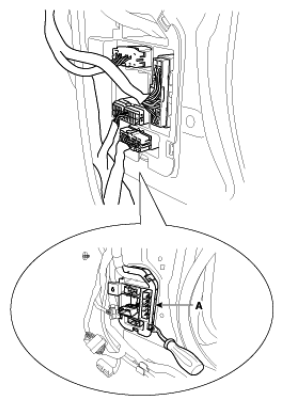

Using a screwdriver, remove the wiring cover (A).

Fig 6: Identifying Wiring Cover
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector mounting clip (A).
[Driver's]

Fig 7: Identifying Driver Connector Mounting Clip
Courtesy of HYUNDAI MOTOR CO.

[Passenger's]

Fig 8: Identifying Passenger Connector Mounting Clip
Courtesy of HYUNDAI MOTOR CO.
Remove the cowl top cover.
(Refer to the COWL TOP COVER .)
Loosen the mounting bolts.

Fig 9: Identifying Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.

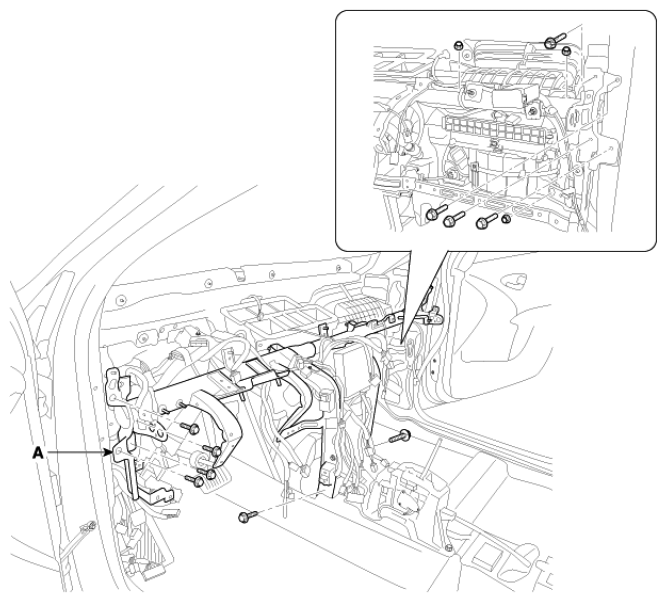

After loosening the mounting bolts and nuts, then remove the cowl cross bar (A).

Fig 10: Identifying Cowl Cross Bar
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Put on gloves to protect your hands.
- Make sure the connectors are plugged in properly.
