Glove Box Replacement

Using a screwdriver or remover, remove the crash pad side cover (A).

Fig 1: Identifying Crash Pad Side Cover
Courtesy of HYUNDAI MOTOR CO.
Disconnect the guide (B), from the glove box (A).

Fig 2: Disconnecting Guide
Courtesy of HYUNDAI MOTOR CO.
Disconnect the lift (A), from the glove box (B).

Fig 3: Disconnecting Lift From Glove Box
Courtesy of HYUNDAI MOTOR CO.

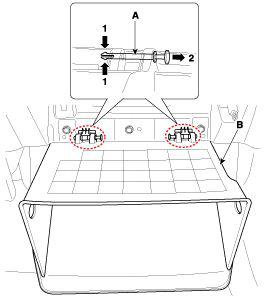

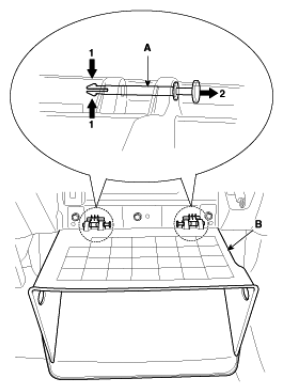

Disconnect the pin (A) and then remove the glove box (B).

Fig 4: Removing Glove Box
Courtesy of HYUNDAI MOTOR CO.
After loosening the mounting screws, then remove the crash pad passenger panel (A).

Fig 5: Identifying Crash Pad Passenger Panel
Courtesy of HYUNDAI MOTOR CO.
After loosening the mounting screws and bolts, then remove the glove box housing (A).

Fig 6: Identifying Glove Box Housing
Courtesy of HYUNDAI MOTOR CO.
Disconnect the lamp connector (B).

Fig 7: Identifying Lamp Connector
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
