Components and Components Location: Components

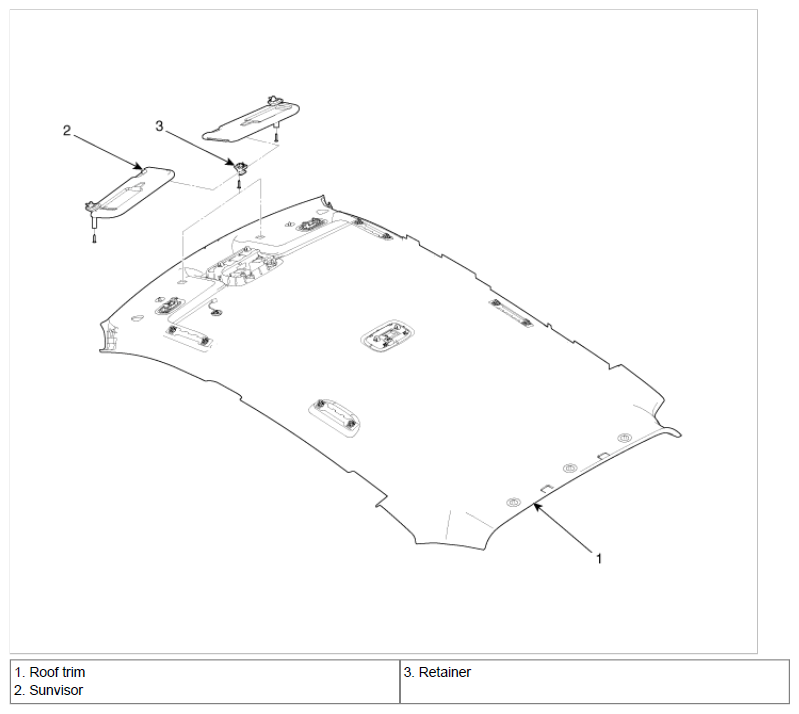

Fig 1: Identifying Roof Trim Components
G06873423Courtesy of HYUNDAI MOTOR CO.

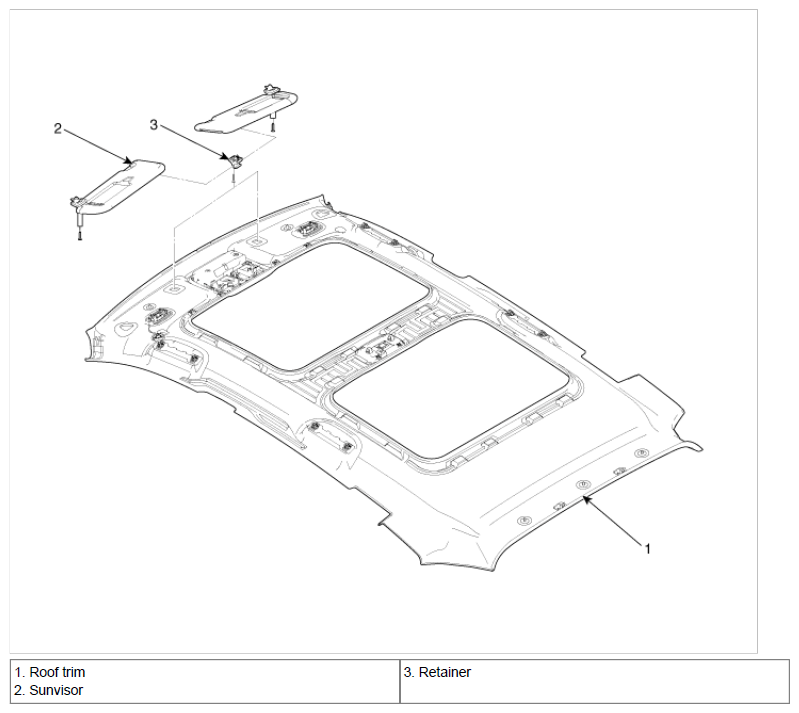

Fig 2: Identifying Roof Trim Components With Panoramic Roof
G06873424Courtesy of HYUNDAI MOTOR CO.
