Overhead Console Replacement

  1. After loosening the mounting screws, then remove the overhead console assembly (A).
    Fig 1: Identifying Overhead Console Assembly
    G06873427Courtesy of HYUNDAI MOTOR CO.

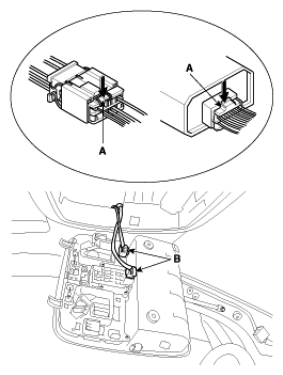

  2. Push the lock pin (A), disconnect the connectors (B).
    Fig 2: Pushing Lock Pin
    G06873428Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
