Room Lamp Replacement

  1. Using a screwdriver, remove the cover (A).
  2. After loosening the mounting screws, then remove the room lamp (B).
  3. Disconnect the connector (C).

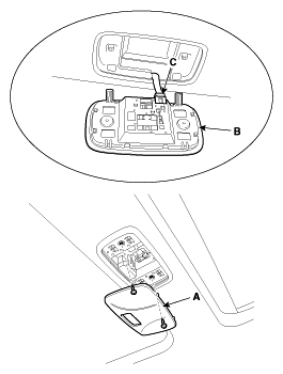

    Fig 1: Identifying Room Lamp, Cover And Connector
    G06873429Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
