Power Window Main Switch

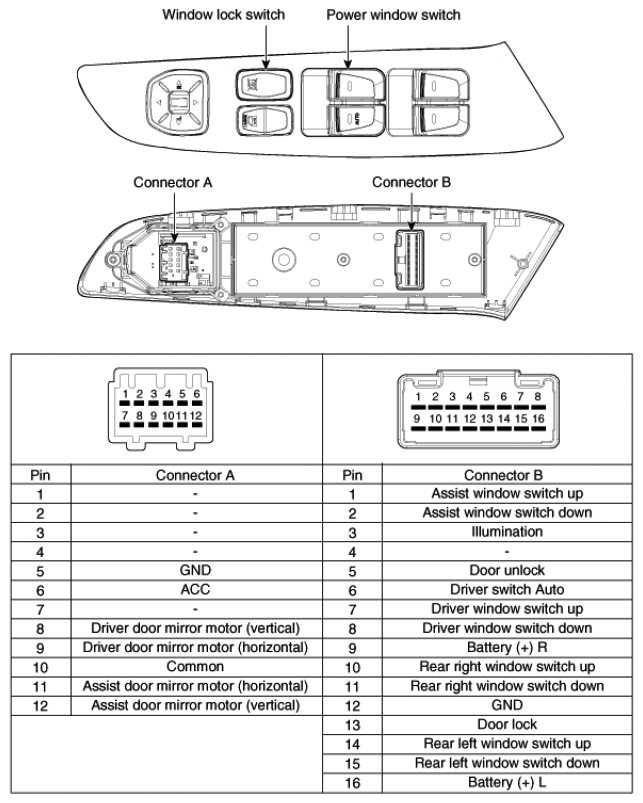

Fig 1: Identifying Power Window Main Switch With Connector Reference Chart
G06874823Courtesy of HYUNDAI MOTOR CO.

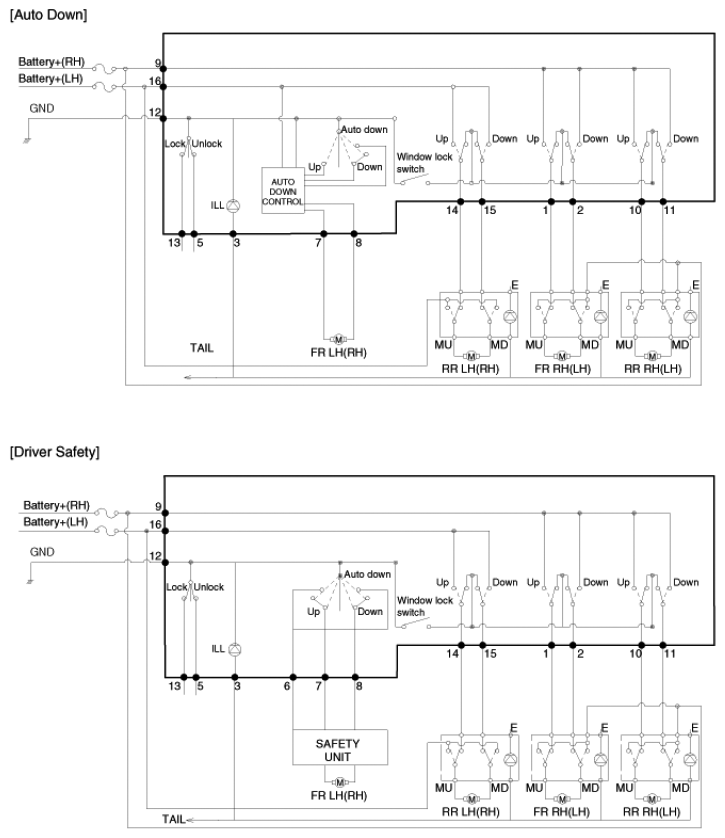

Fig 2: Power Window Main Switch Connector Circuit Diagram
G06874824Courtesy of HYUNDAI MOTOR CO.
