Rear Power Window Switch

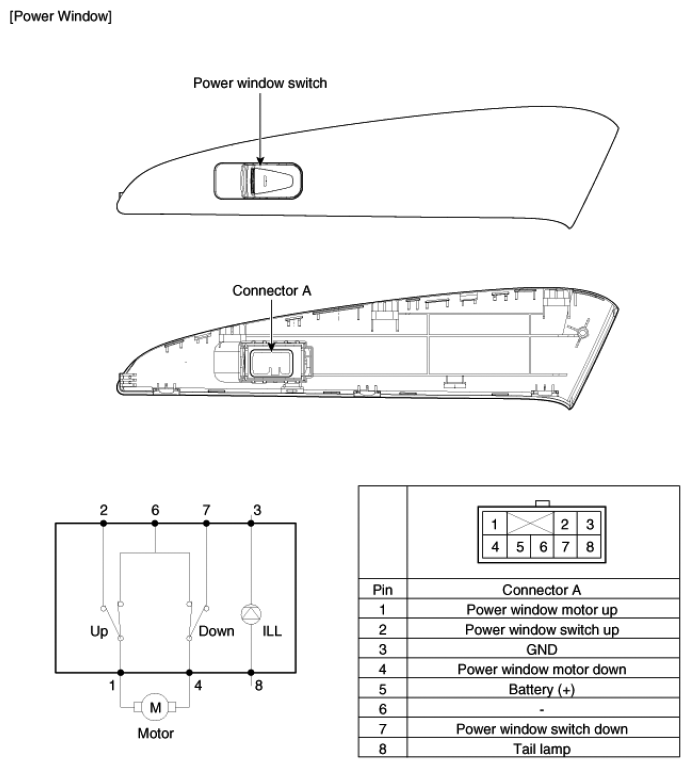

Fig 1: Identifying Rear Power Window Switch With Connector Terminal Reference Chart
G06874827Courtesy of HYUNDAI MOTOR CO.
