Removal and Installation

Disconnect the terminals (A) from the battery.
Disconnect negative battery terminal first.

Tightening torque:

(-) terminal: 4.0 ~ 6.0 N.m (0.4 ~ 0.6 kgf.m, 3.0 ~ 4.4 lb-ft)

(+) terminal: 7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)
Remove the battery insulation pad (B).
Remove the battery mounting bracket by loosening the mounting bolt and then remove the battery (C).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 1: Identifying Battery And Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the battery tray (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

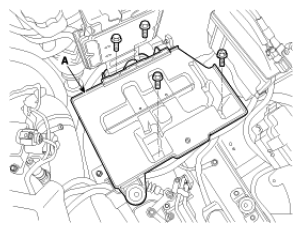

Fig 2: Identifying Battery Tray And Bolts
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse order of removal.
Reconnecting the negative battery terminal last.

CAUTION: When installing the battery, fix the mounting bracket on the tray correctly.
