PDM (Power Distribution Module) Relay Box

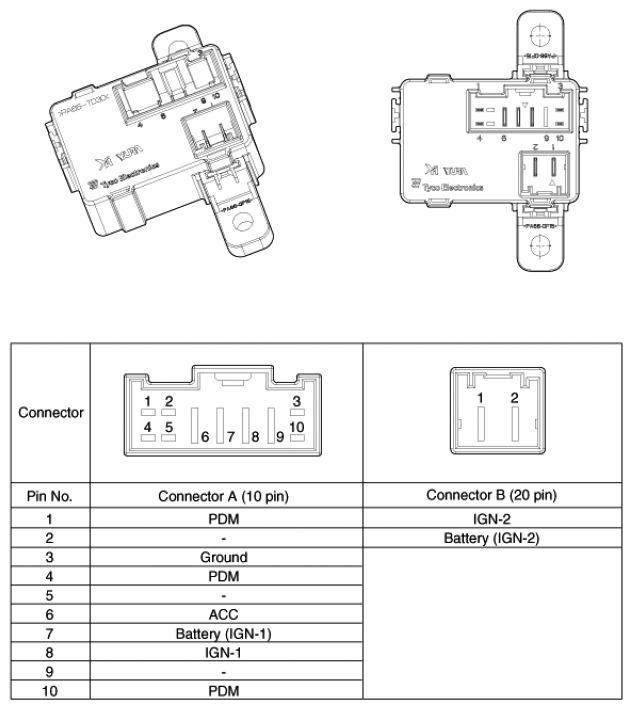

Fig 1: Identifying Power Distribution Module Relay Box With Connector Terminals Description Chart
G06873850Courtesy of HYUNDAI MOTOR CO.
