PDM Diagnosis With GDS

It will be able to diagnose defects of Smart key with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
Select model and "Smart key system (Button start)" menu if you want to check PDM.

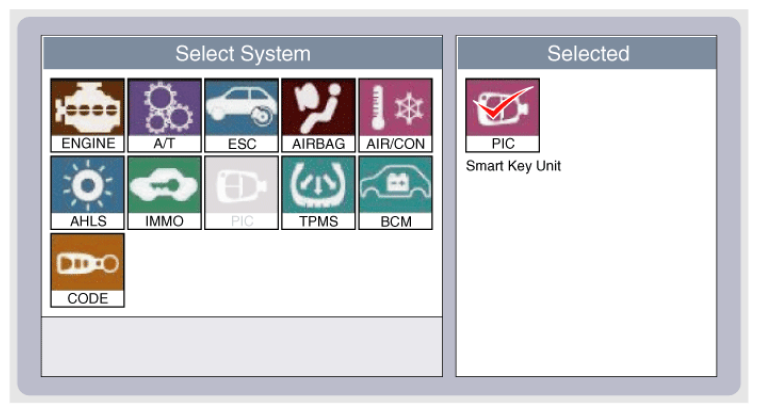

Fig 1: Selecting Smart Key Unit In GDS Menu
Courtesy of HYUNDAI MOTOR CO.
Select "PDM" in the menu.

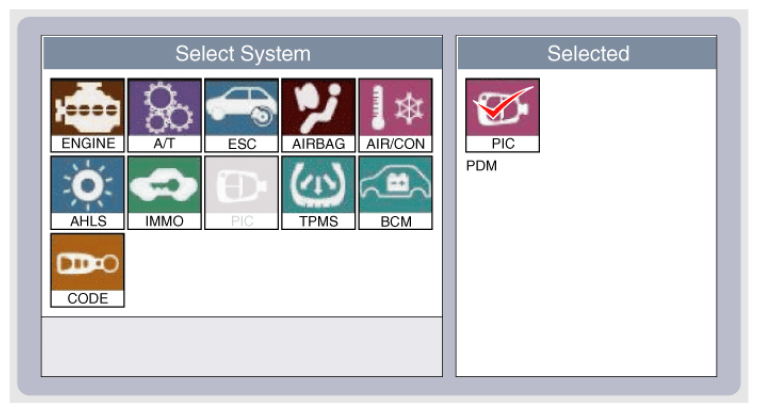

Fig 2: Selecting PDM In GDS Menu
Courtesy of HYUNDAI MOTOR CO.
Select "Current Data", if you want to check current data of PDM.
It provides the input/output status of each module.

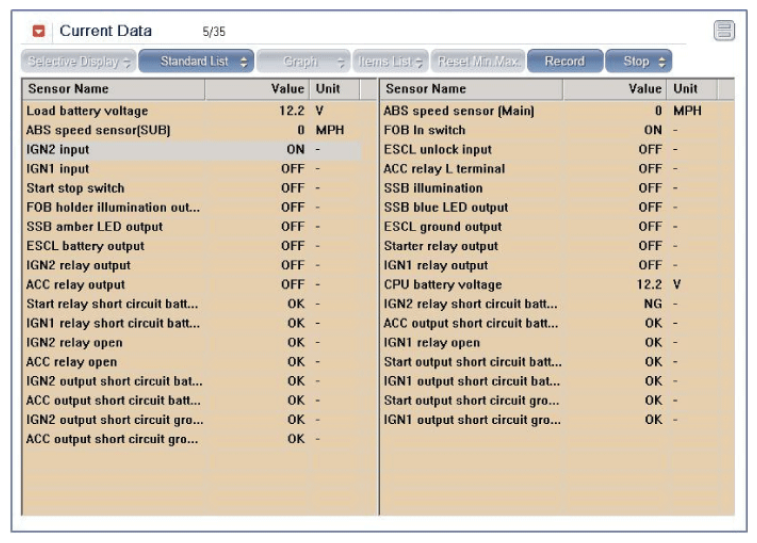

Fig 3: Selecting Current Data In GDS Menu
Courtesy of HYUNDAI MOTOR CO.
If you want to check PDM data operation forcefully, select "Actuation test".

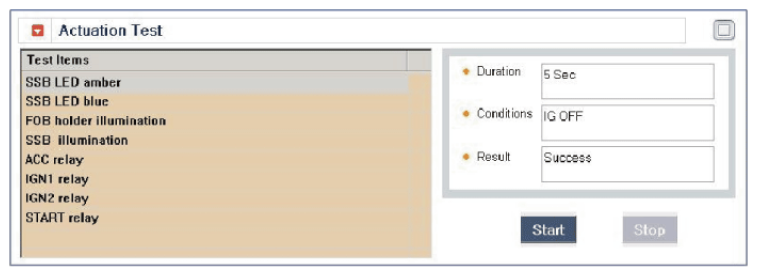

Fig 4: Selecting Actuation Test In GDS Menu
