System Circuit Diagram

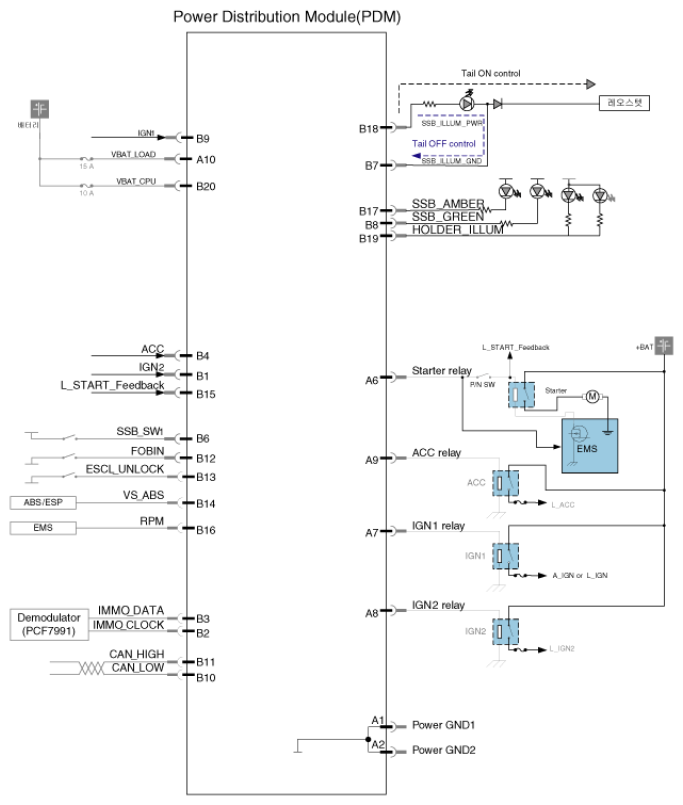

Fig 1: Power Distribution Module System Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
