Components and Components Location: Component

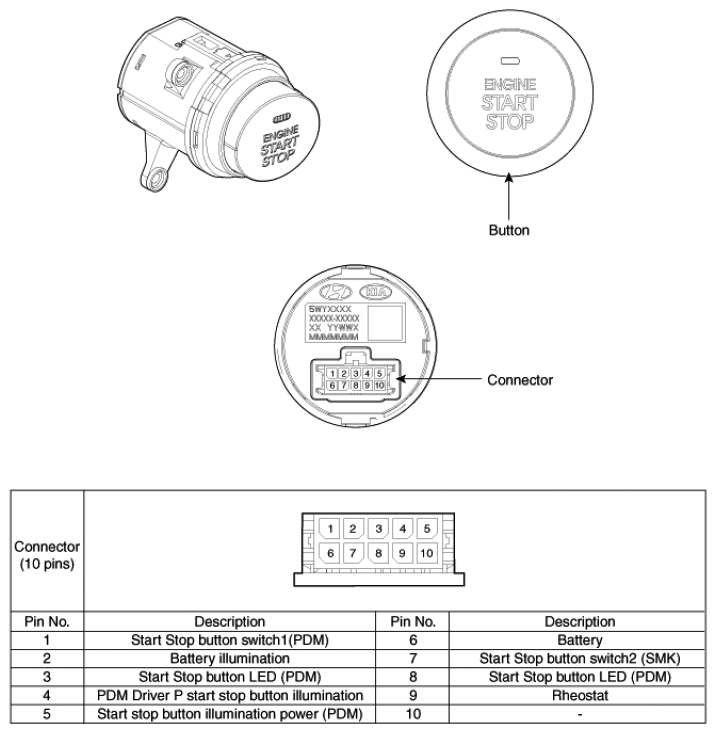

Fig 1: Identifying Engine Start/Stop Button With Connector Description Chart
G06873843Courtesy of HYUNDAI MOTOR CO.
