Components and Components Location: Components

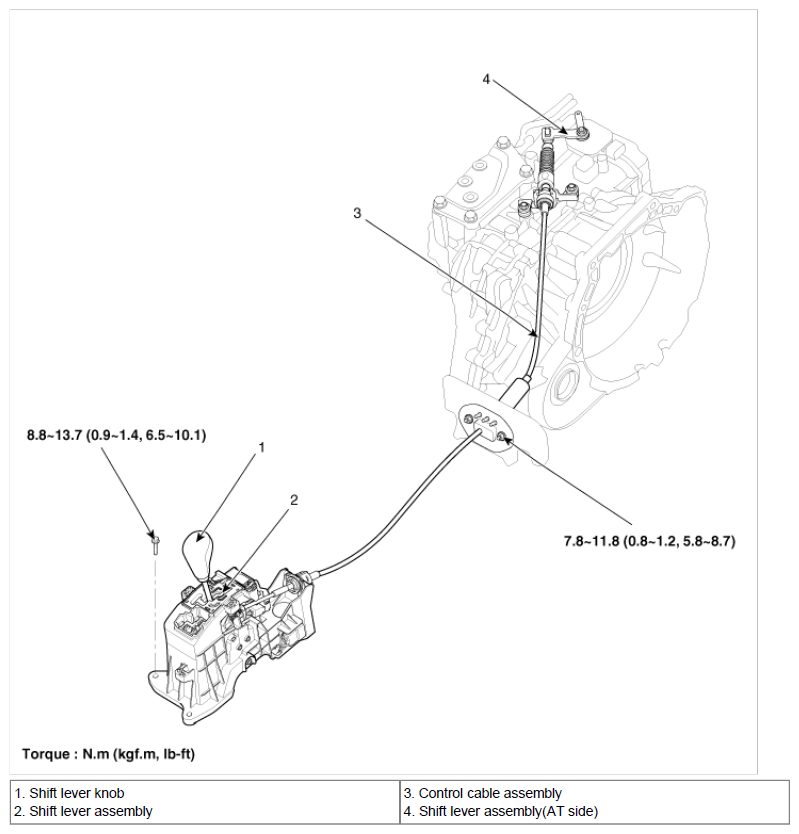

Fig 1: Shift Lever Knob, Assembly (AT Side) And Control Cable Assembly With Torque Specifications
G06873187Courtesy of HYUNDAI MOTOR CO.
