Components (1)

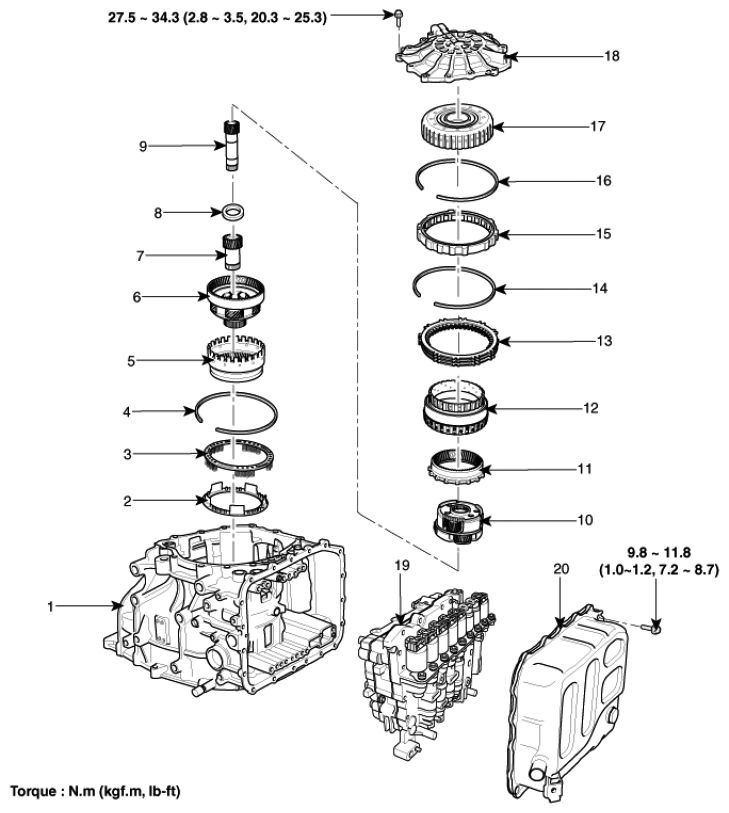

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
