Repair Procedures: Installation

Installation is the reverse of removal.
CAUTION:
After replacement or reinstallation procedure of the automatic transaxle assembly, must perform procedures below.
- Power steering fluid replacement and air bleeding (Refer to GENERAL INFORMATION (STEERING SYSTEM) .)
- Adding automatic transaxle fluid. (Refer to OIL LEVEL CHECK .)
NOTE:
- When replacing the automatic transaxle, reset the automatic transaxle's values by using the GDS.
  [Condition]
  - IG Key On
  - Transaxle Range: P
  - Vehicle Speed: 0 km/h
  - Engine Off

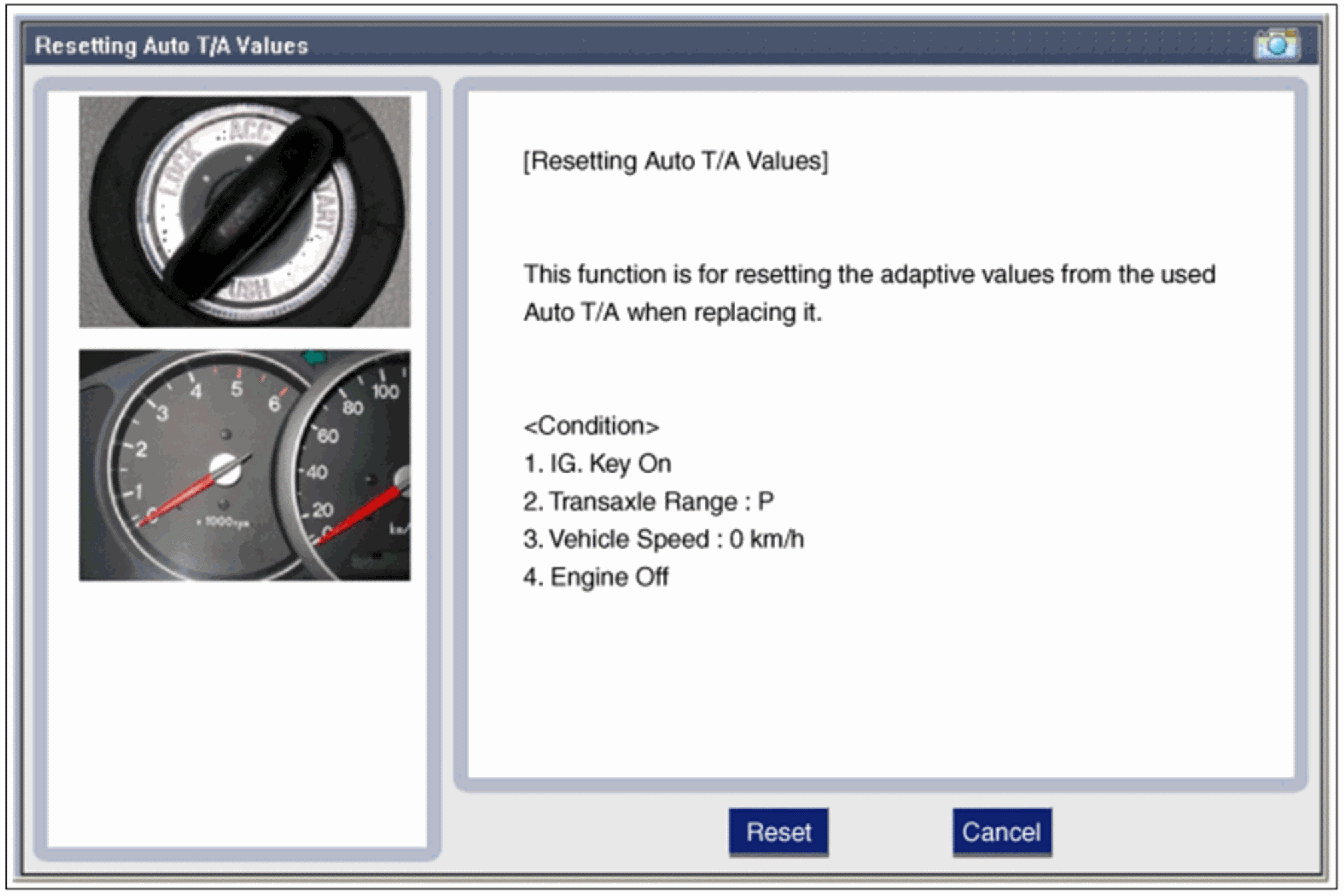

    Fig 1: Resetting Automatic Transaxle Values
    Courtesy of HYUNDAI MOTOR CO.

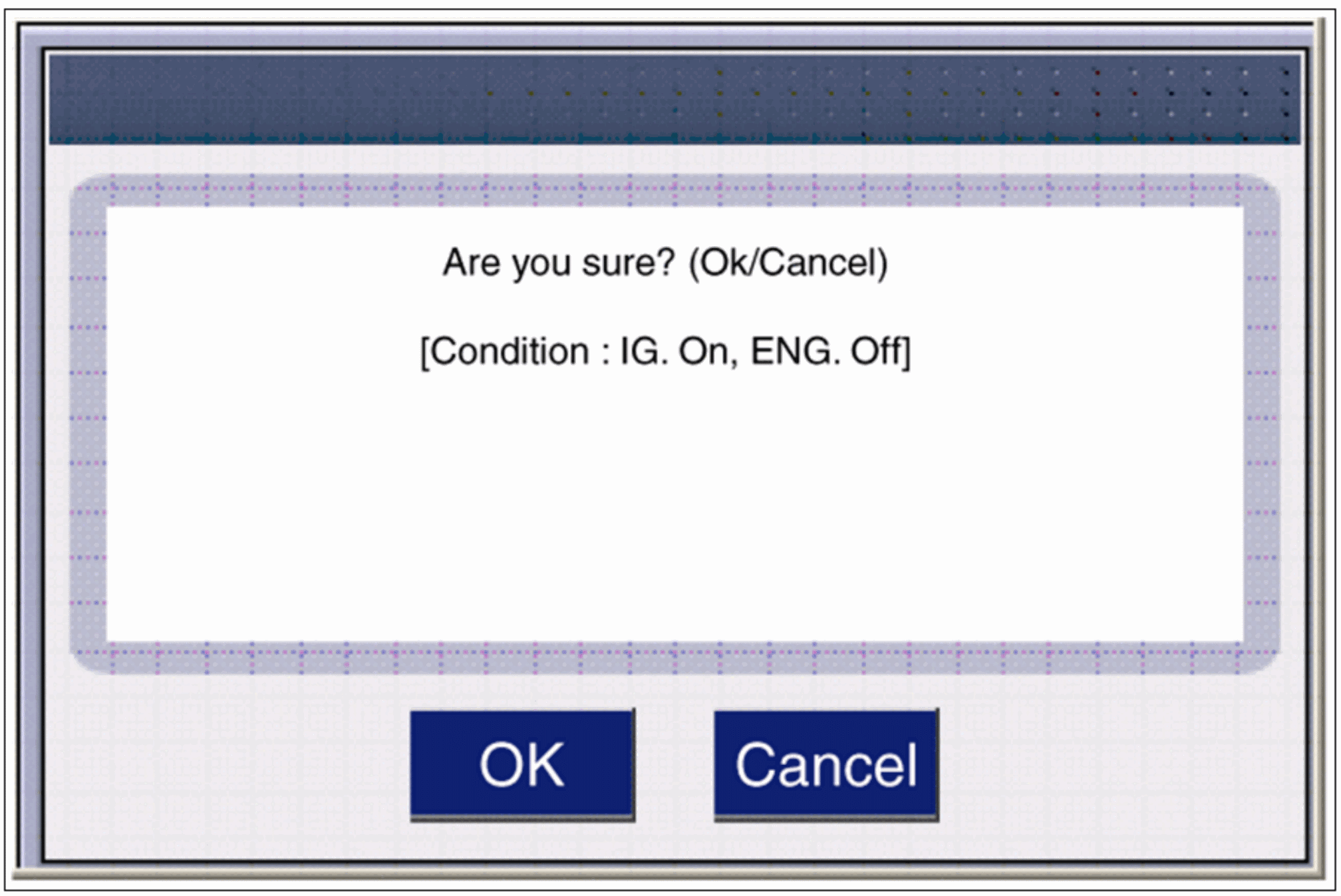

    Fig 2: Verifying Conditions For Resetting
    Courtesy of HYUNDAI MOTOR CO.

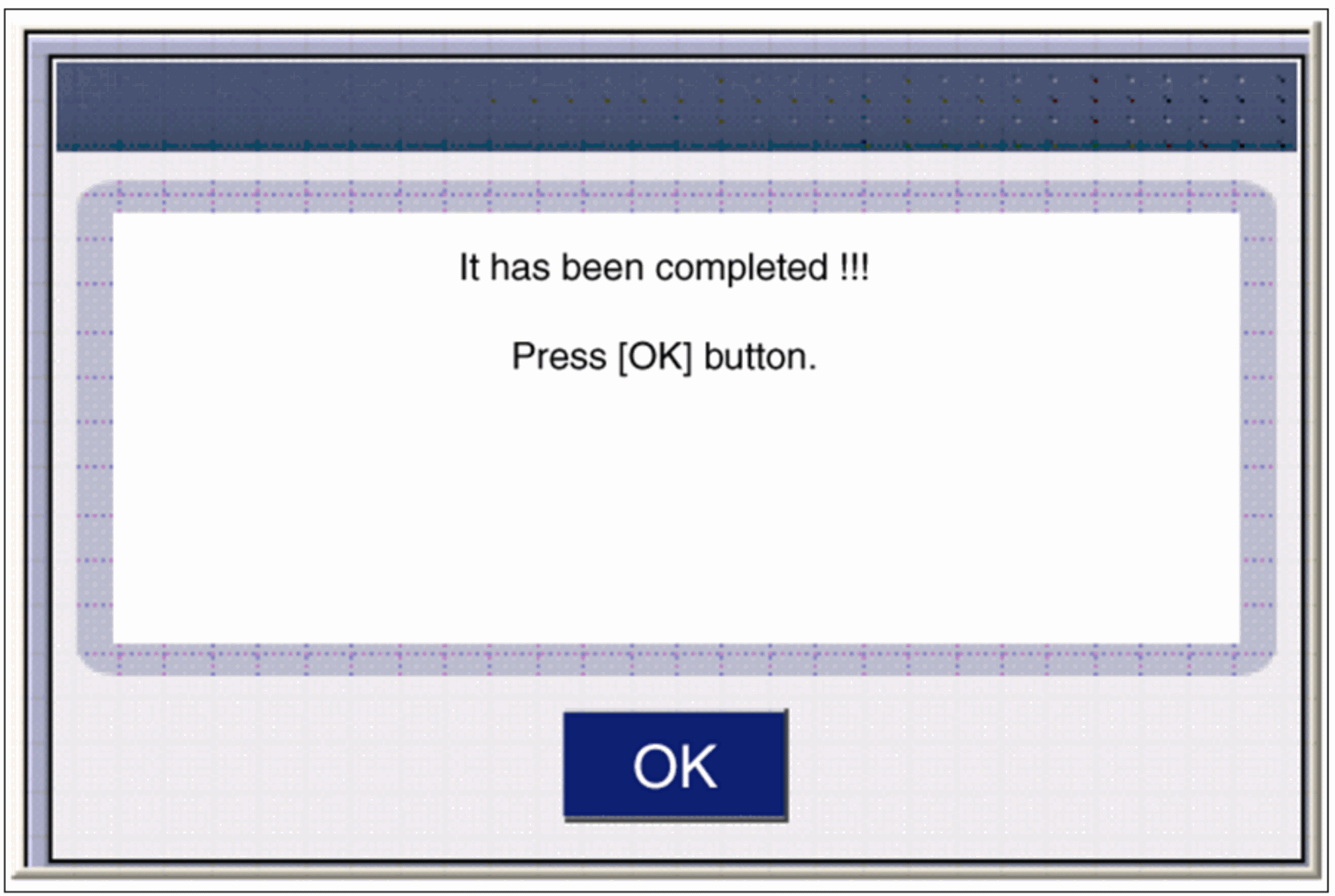

    Fig 3: Resetting Procedure Completed
    Courtesy of HYUNDAI MOTOR CO.
