Repair Procedures: Removal

Set room side lever and T/M side lever to "N" position.
Remove the battery and the battery tray. (Refer to CHARGING SYSTEM .)
Remove the air cleaner assembly. (Refer to INTAKE MANIFOLD .)

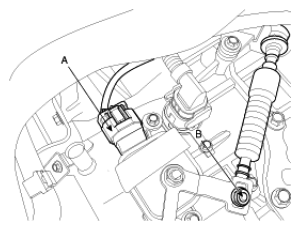

Remove the shift cable mounting nut (B).
Disconnect the inhibitor switch connector (A).

Fig 1: Identifying Inhibitor Switch Connector And Shift Cable Mounting Nut
Courtesy of HYUNDAI MOTOR CO.

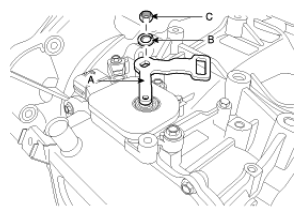

Remove the manual control lever (A) and the washer (B) after removing a nut (C).

Fig 2: Identifying Manual Control Lever With Washer And Nut
Courtesy of HYUNDAI MOTOR CO.

CAUTION: When installing, fix the manual control lever and the inhibitor switch with Ø5 mm (0.1969 in.) fixing jig.
And then tighten the inhibitor assembly mounting bolts.

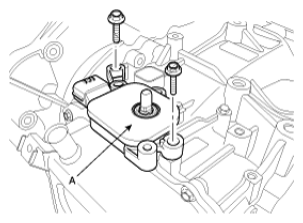

Remove the inhibitor assembly (A) after removing the bolts (2ea).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 3: Identifying Inhibitor Assembly
Courtesy of HYUNDAI MOTOR CO.

CAUTION: When installing, tighten the inhibitor assembly mounting bolt lightly.
