Front Power Window Motor

Remove (-) negative battery terminal.
Remove the front door trim.
(Refer to the FRONT DOOR .)
Disconnect the connector from the motor.
(A: Safety, B: Standard)

Fig 1: Identifying Front Power Window Motor Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Connect the motor terminals directly to battery voltage (12 V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.
[Standard]

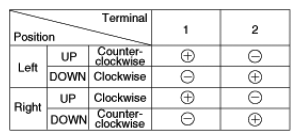

Fig 2: Motor Functional Chart
Courtesy of HYUNDAI MOTOR CO.
Connect the terminal No. 2 and No. 3 to battery voltage (12 V) and check that the motor operates smoothly when connecting the terminals below.
[Safety]

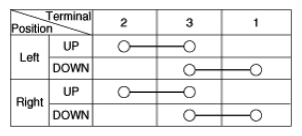

Fig 3: Motor Connector Terminals Continuity Chart
Courtesy of HYUNDAI MOTOR CO.
