Front Power Window Motor Inspection

Remove the front door trim panel.
(Refer to the "FRONT DOOR ")
Disconnect the connector from the motor.
[Driver]

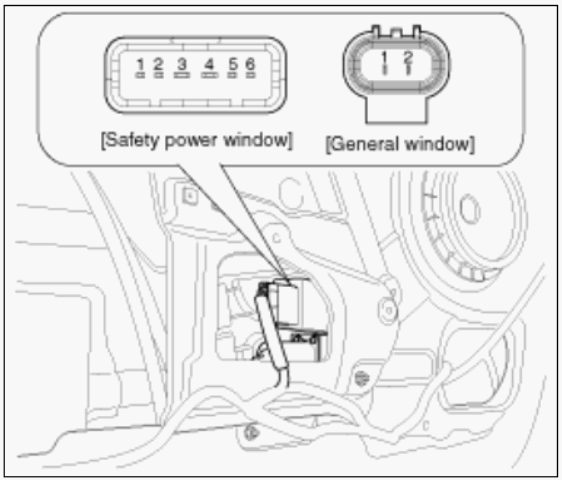

Fig 1: Identifying Front Power Window Motor Connector (Driver)
Courtesy of HYUNDAI MOTOR AMERICA

[Assistant]

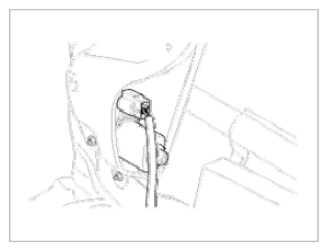

Fig 2: Identifying Front Power Window Motor Connector (Assistant)
Courtesy of HYUNDAI MOTOR AMERICA
Connect the motor terminals No. 2 and No. 3 directly to battery voltage (12V) and connect the motor terminal No. 4 to ground (0V).
Check that the motor operates smoothly.

If the operation is abnormal, replace the motor.

[Safety Power Window]

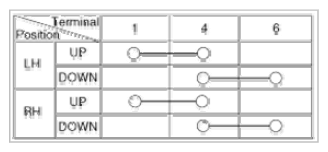

Fig 3: Front Power Window Motor Continuity Reference Chart (Safety Power Window)
Courtesy of HYUNDAI MOTOR AMERICA
Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.
[General Window]

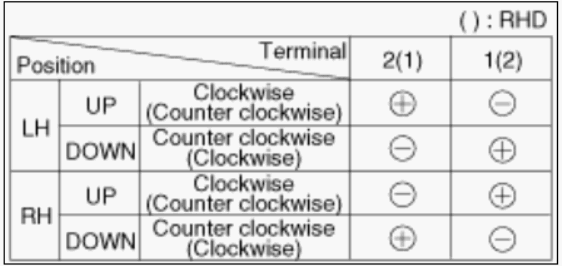

Fig 4: Front Power Window Motor Continuity Reference Chart (General Window)
Courtesy of HYUNDAI MOTOR AMERICA
