Components and Components Location

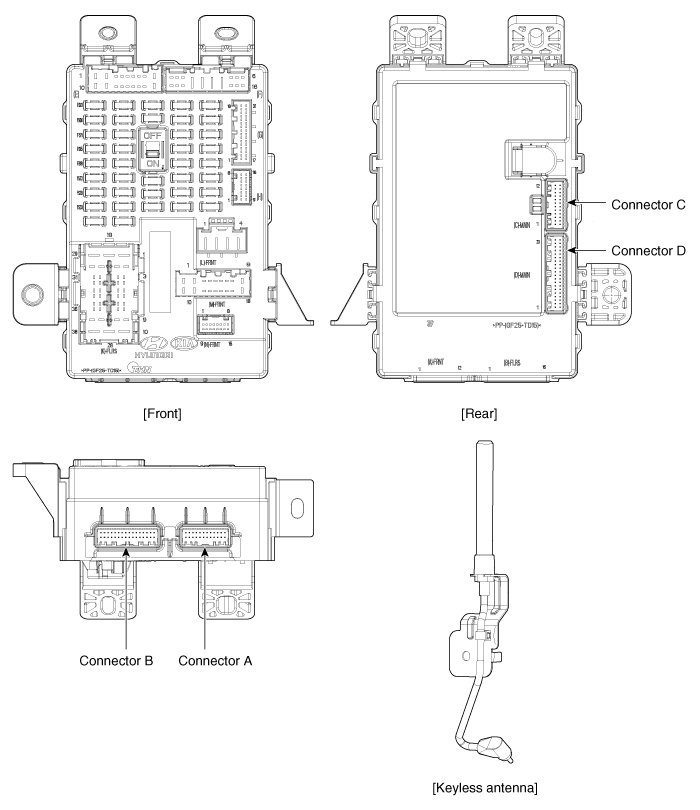

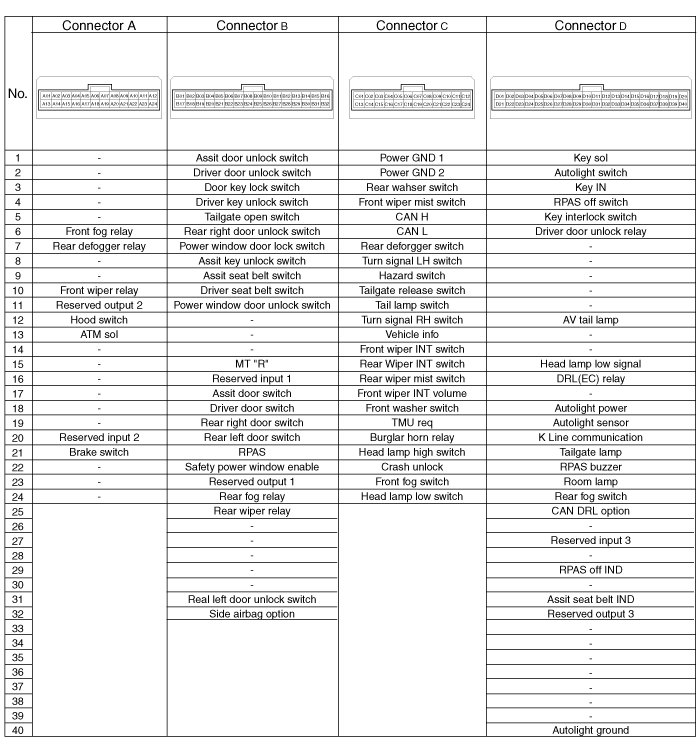

Components




** Internal Buzzer : Rear parking assist system buzzer

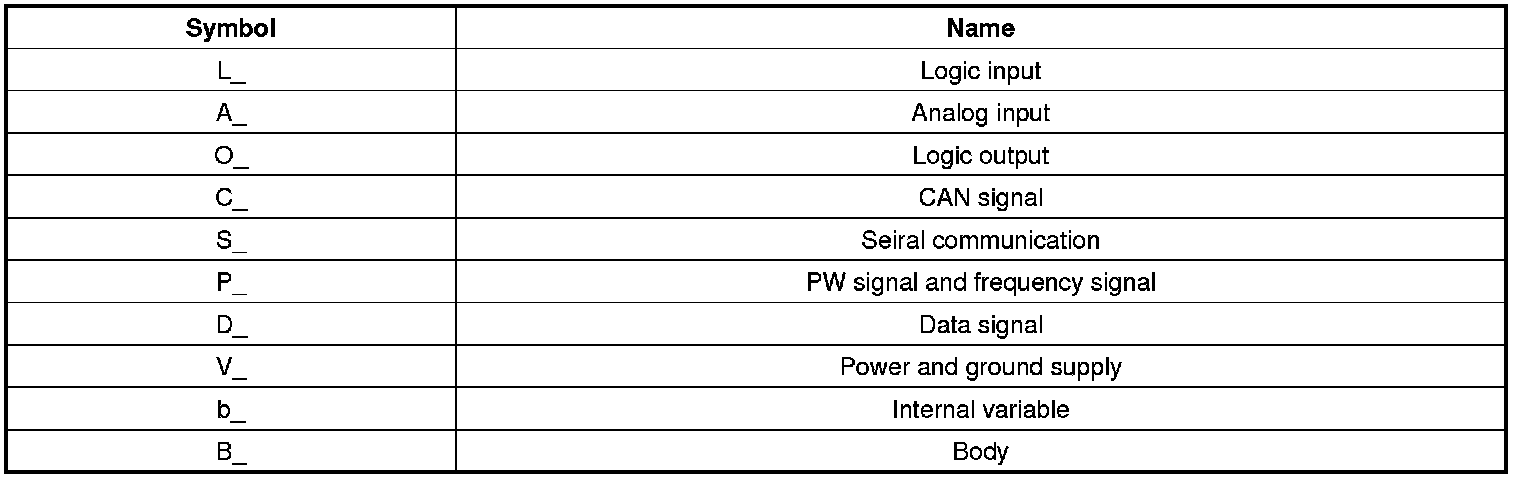

Signal Characteristics

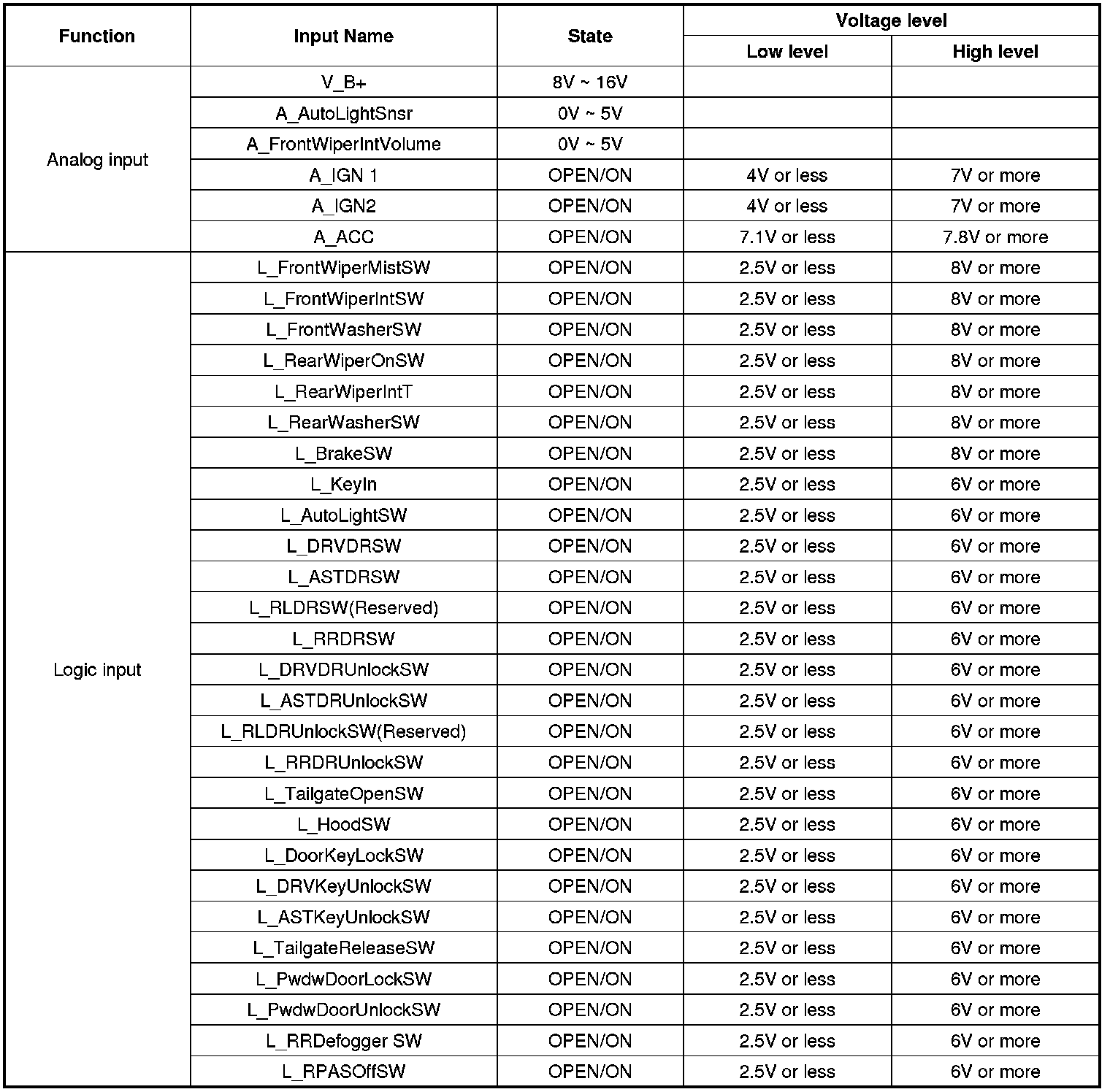

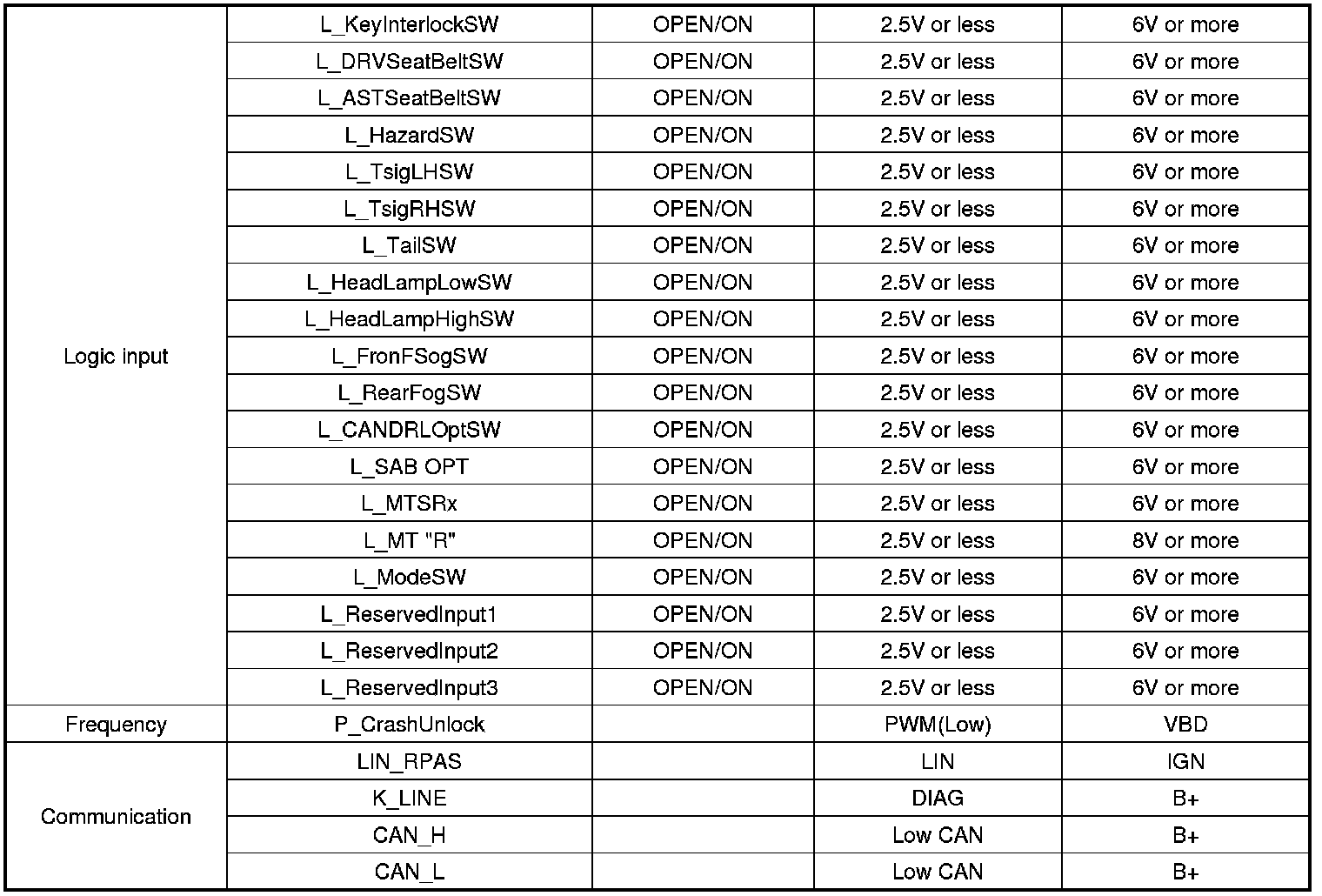

BCM (IPM) Inputs Description and Characteristics

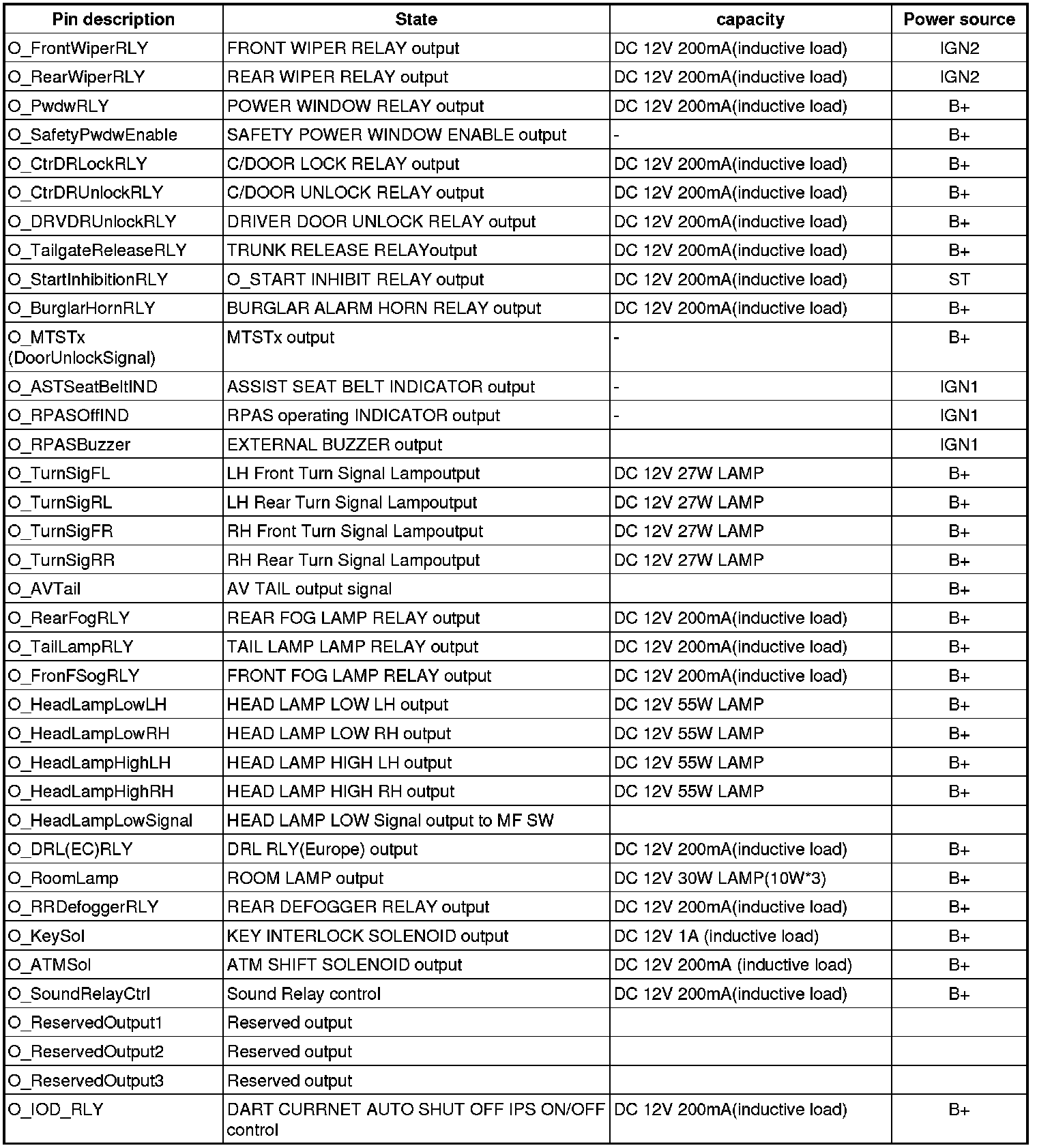

BCM (IPM) Outputs Description and Characteristics

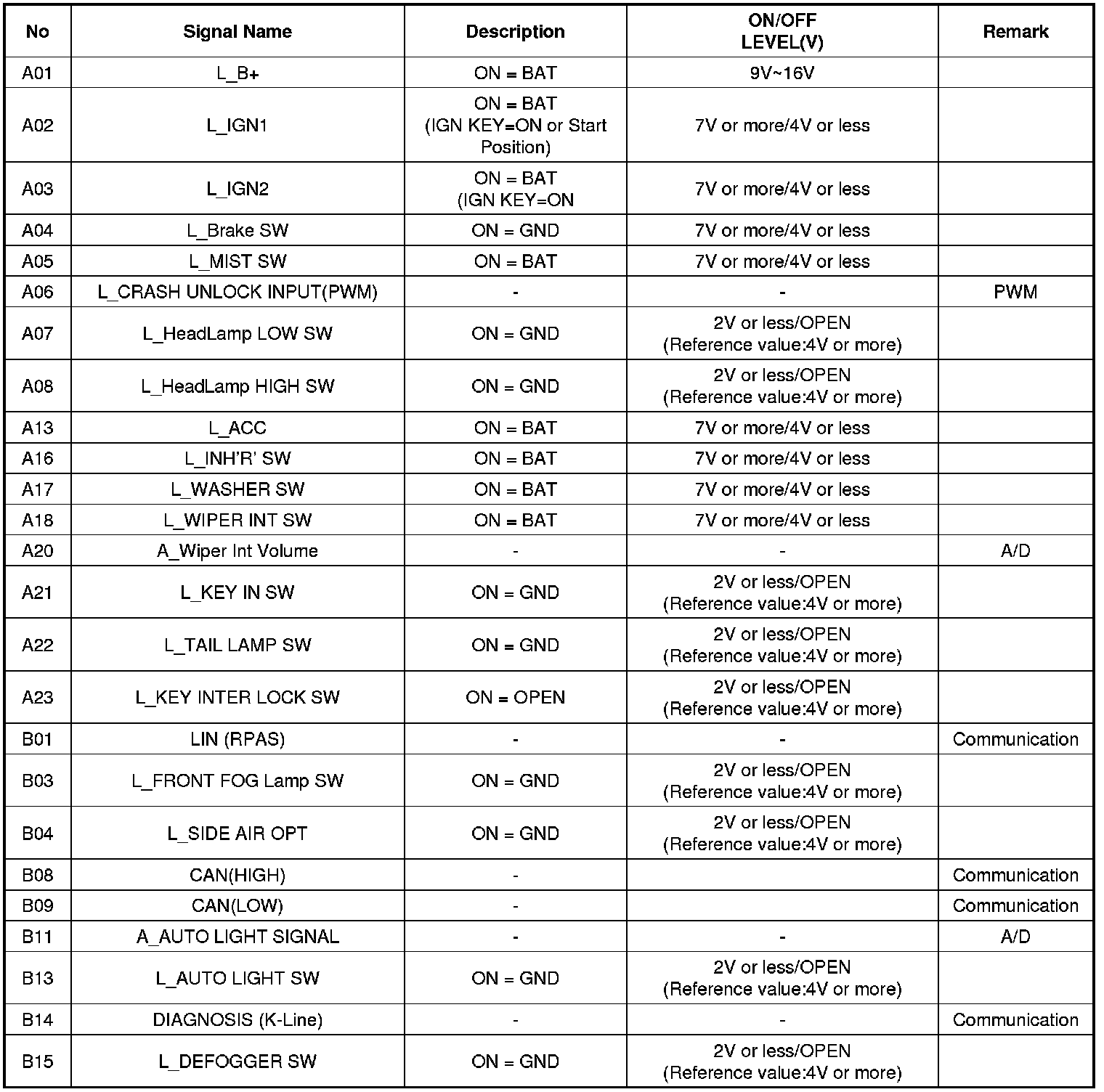

BCM (IPM) Input Signal Specification
