Impact Sensor
>>
Driver Side Impact Sensor
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Driver Side Impact Sensor

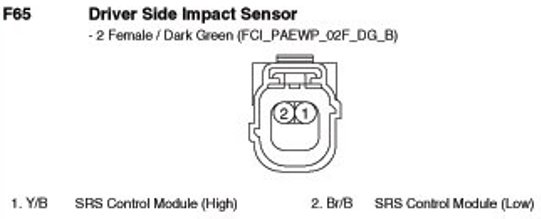

F65 Driver Side Impact Sensor:
